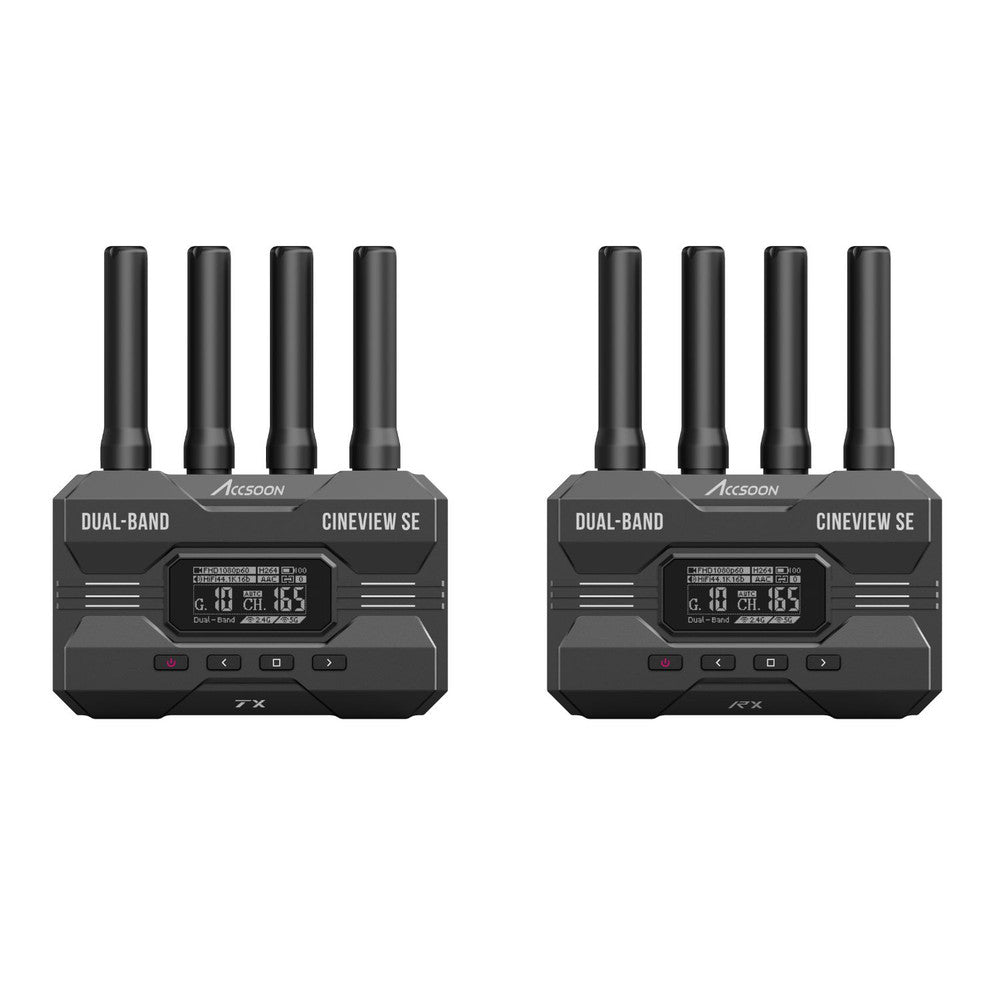

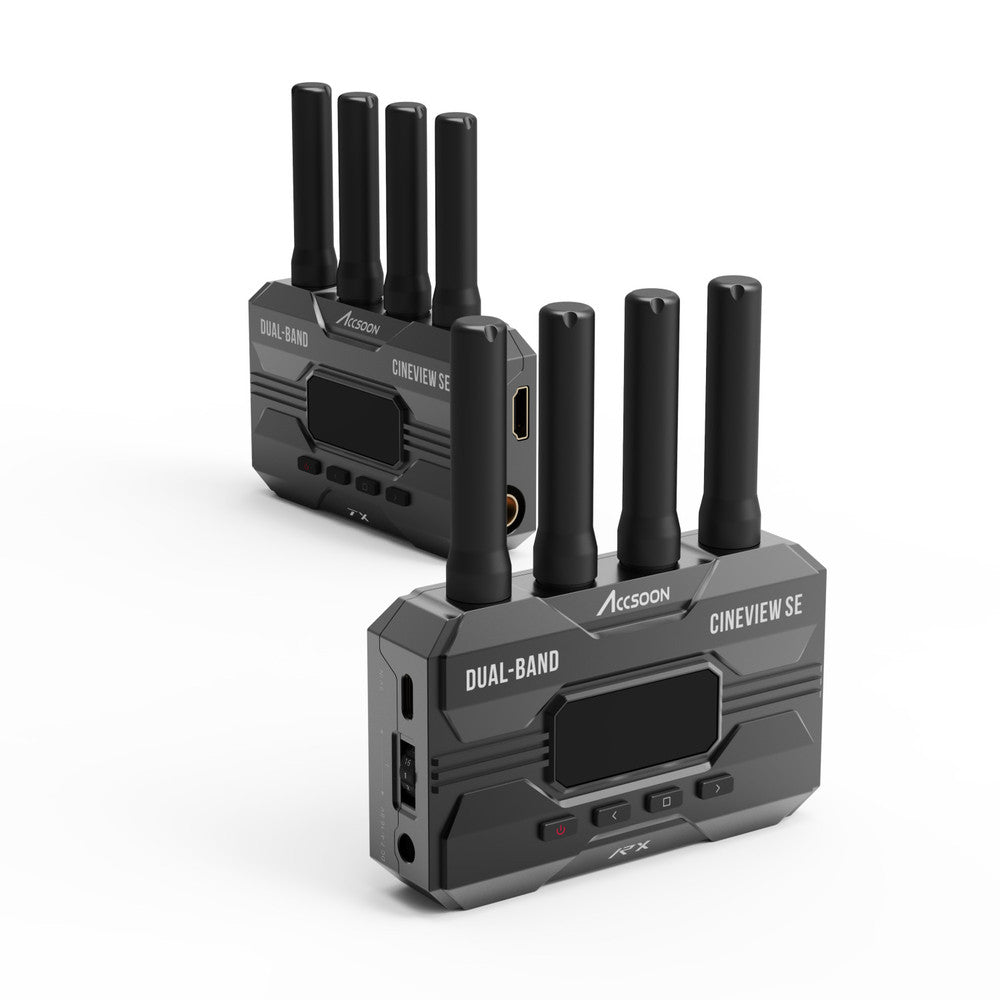

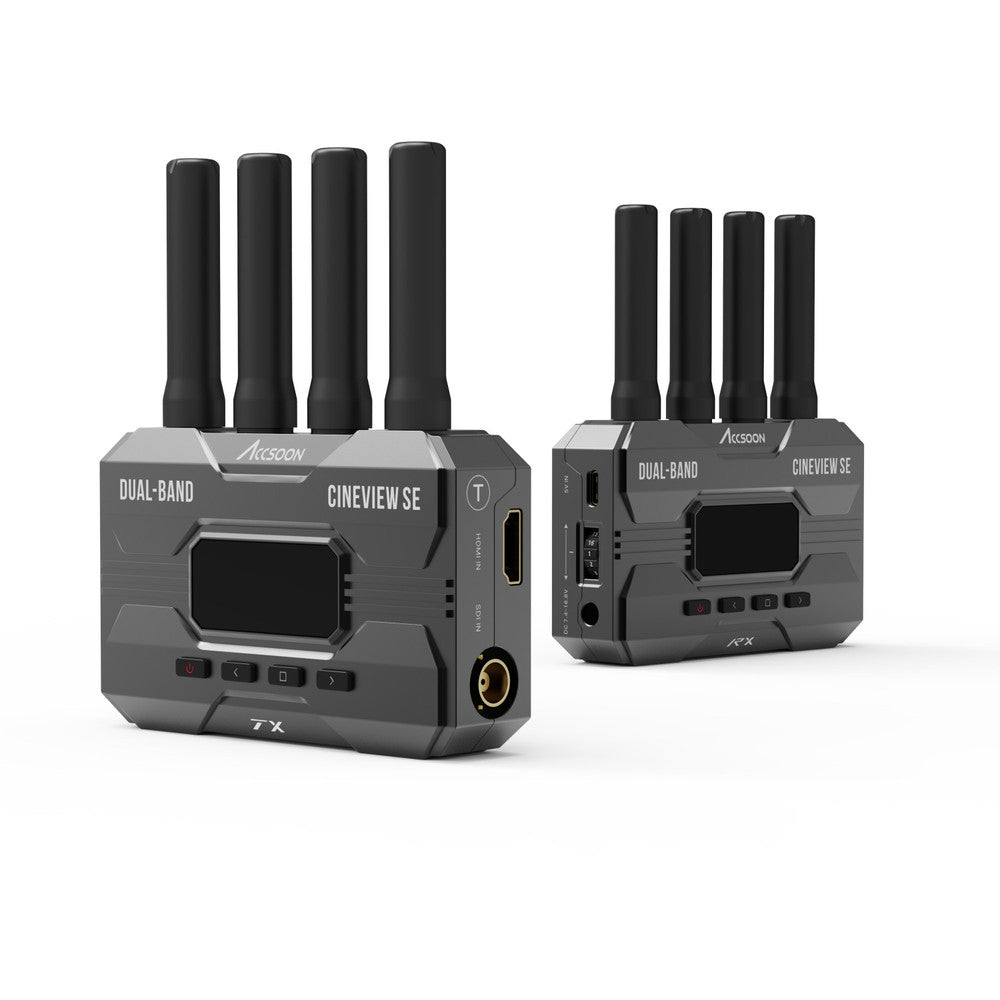

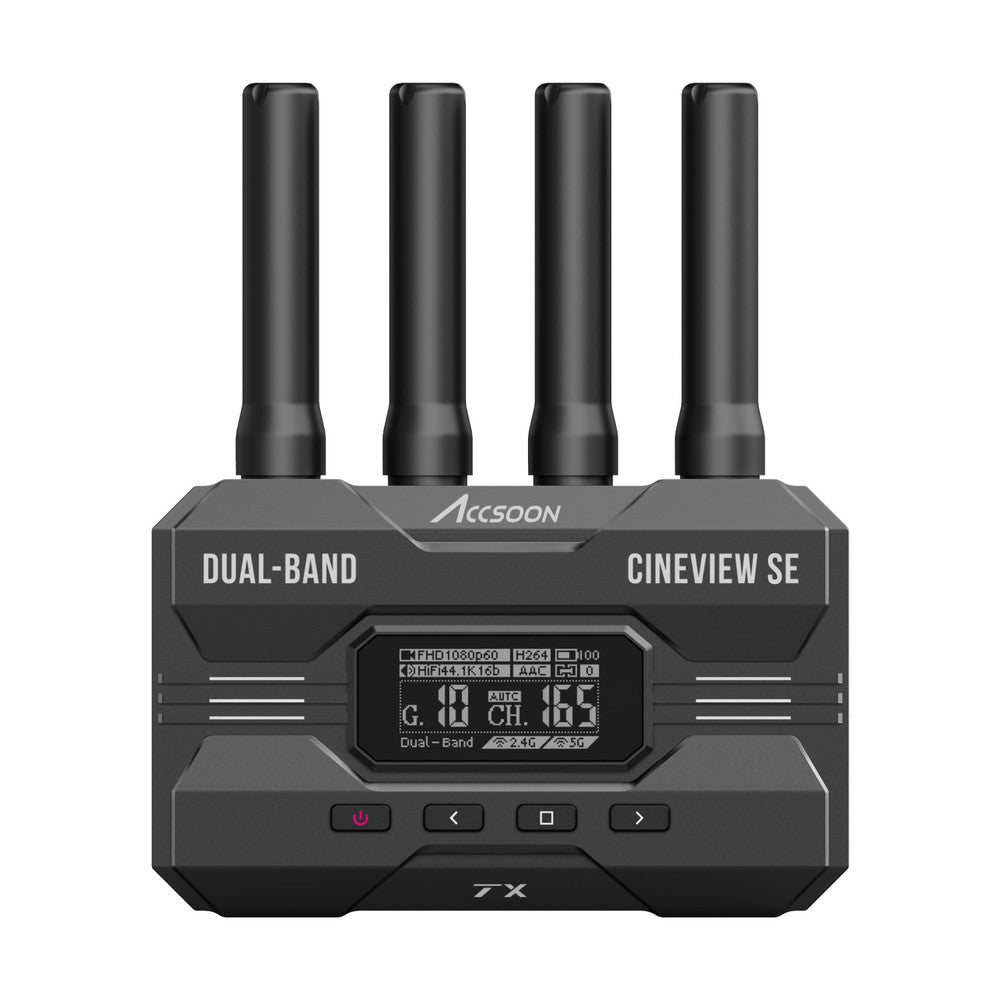

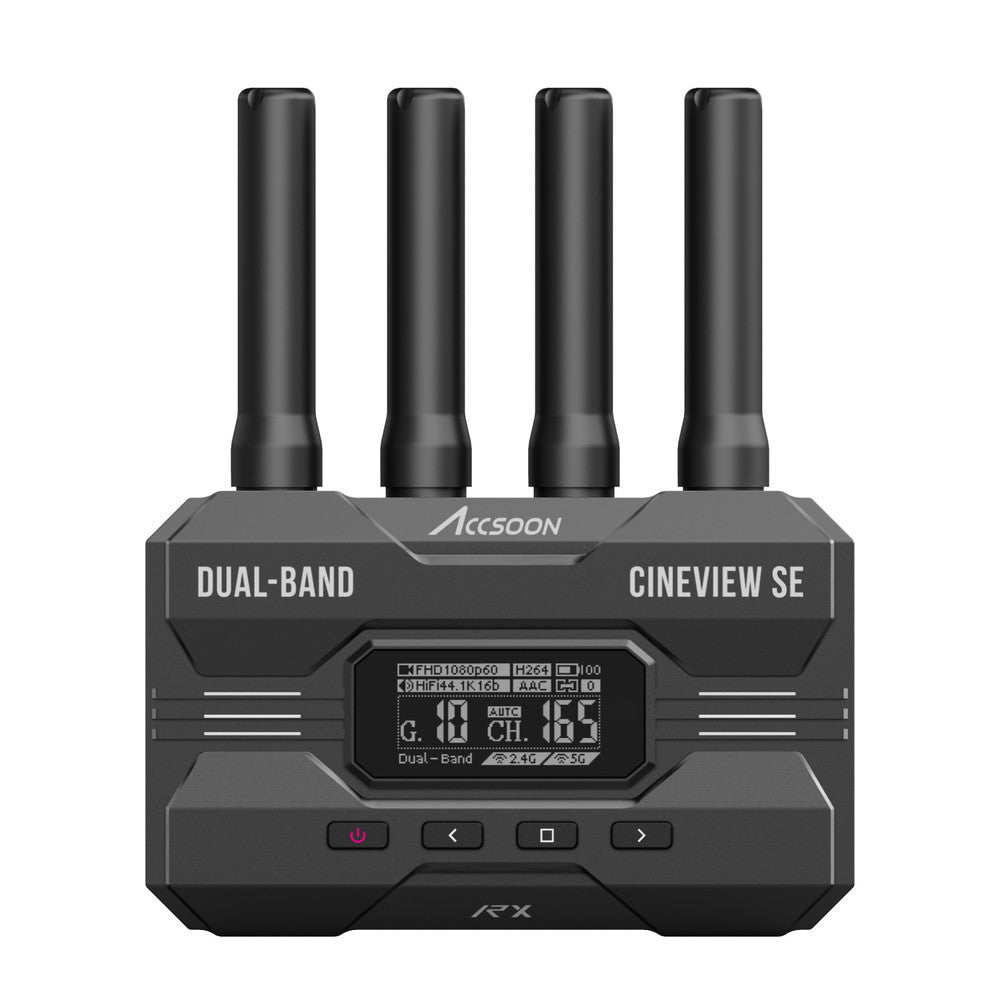

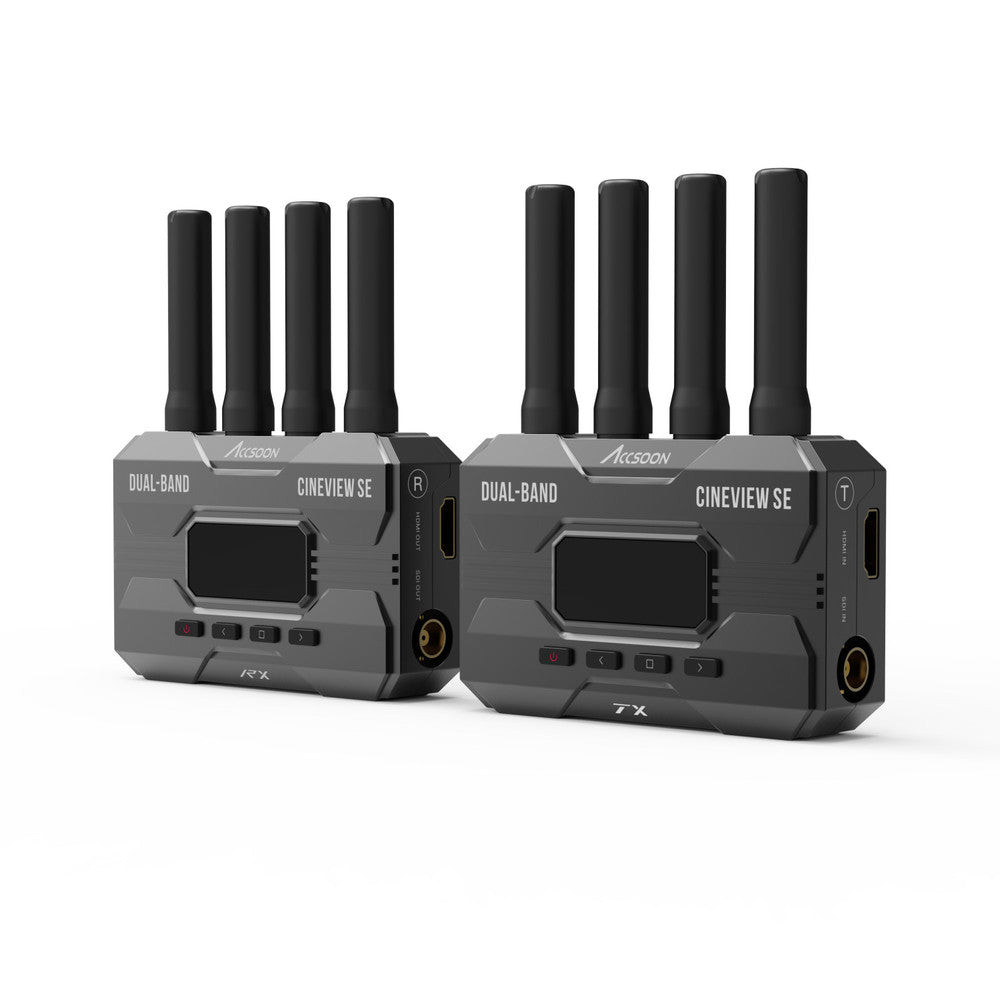

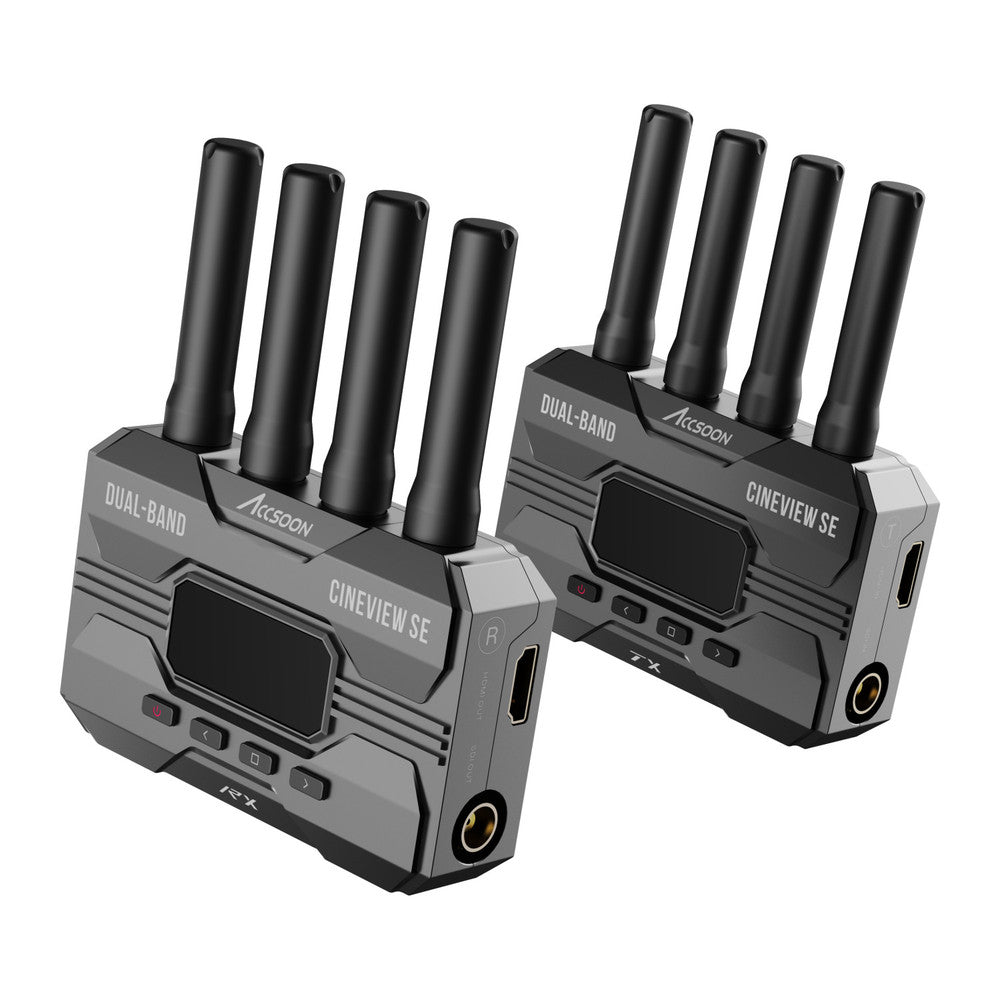

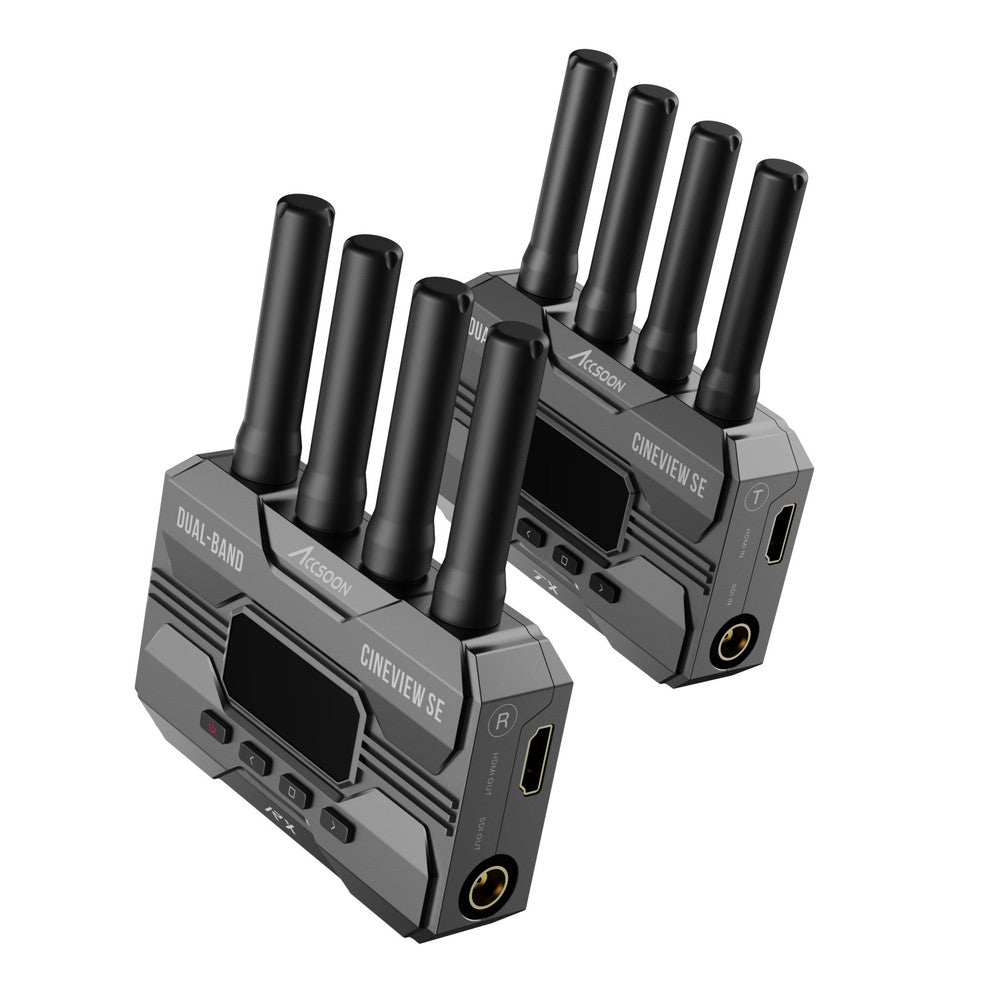

CineView SE
Small in size, big on features. With new best in class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.
THE NEW STANDARD
Market proved wireless stability.
The CineView SE utilizes dual-band transmission technology, which allows it to stream video via 2.4GHz and 5GHz Wi-Fi at the same time. The receiver can then intelligently identify interference and combine the two streams to form the complete audio and video stream.
BREAKTHROUGH
Superlow. Superfar.
The CineView SE is the most powerful model ever created for a faster, more responsive feel. Add to that a strong and powerful enough signal that can transmit up to 1200ft distance.
design
Compact and lightweight. Easy to rig.
Rugged design with a 1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminum construction keeps the weight of the units down to a minimum.
No noise at all
Seriously, you won’t hear any noise. And it’s very COOL.
PRO POWER&SILENT COOLING
Lower power draw for longer shootings.
Choose between an NP-F style battery, a DC input port (7.4V~16.8V) as well as a USB-C power source (5V).
VIEW
Monitoring as you like
Enjoy monitoring on up to 4 different devices.
SMART APP
Unlock ultrafun possibilities
Connect and instantly share previews on Accsoon GO.
- Smart Sharpening
- LUT Loading & Recording
- Live
- Onion Skin Overlay
Connect and instantly share previews on Accsoon GO.
| CineView SE | CineView Quad | CineView HE | |
|---|---|---|---|
| Latency | <50ms Latency | <60ms Latency | <60ms Latency |
| Range | 1200ft | 500ft | 1200ft |
| Input & Output | SDI IN&OUT HDMI IN&OUT |
SDI IN&OUT HDMI IN&OUT |
HDMI IN&OUT HDMI LOOP OUT UVC Live Streaming |
| Antenna | Swappable Antenna* | Built-in Antenna | Swappable Antenna* |
| Powered By | NP-F Battery 7.4~16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4~16.8V DC IN |
NP-F Battery 7.4~16.8V DC IN 5V USB-C IN |
Specifications
| Projects | Transmitter |
|---|---|
| Video Input | SDI/HDMI |
| SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM |
| Latency | <0.05s (Camera latency not included) |
| OLED Display | 1.3inch |
| Transmission Power | 17~20dBm |
| Transmission Range | 1200ft (No obstacles, no interference) |
| Power Consumption | 4.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 210g (Antennas not included) |
| Projects | Transmitter |
|---|---|
| Video Output | SDI/HDMI |
| SDI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
| HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| OLED Display | 44.1KHz/48KHz 16bit/24bit PCM |
| Power Consumption | <0.05s (Camera latency not included) |
| Operating Environment Temperature | 1.3inch |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 210g (Antennas not included) |
