Elinchrom ONE Off Camera Flash Kit # EL20932.1

  • $999.99
    Unit price per
Shipping calculated at checkout.


Elinchrom ONE Off Camera Flash Kit

Always be ready when inspiration strikes with the supremely compact and lightweight Elinchrom ONE. Weighing only 3.3 lbs (1.5kg), the ONE merges 131 Ws of capacity with features including an integrated Li-ion battery, USB-C Active Charging, TTL, HSS, and a streamlined touch interface into a low profile housing. A portable, rugged and dependable off-camera flash equipped for your next adventure. Wherever that may be.

Keep a Low Profile

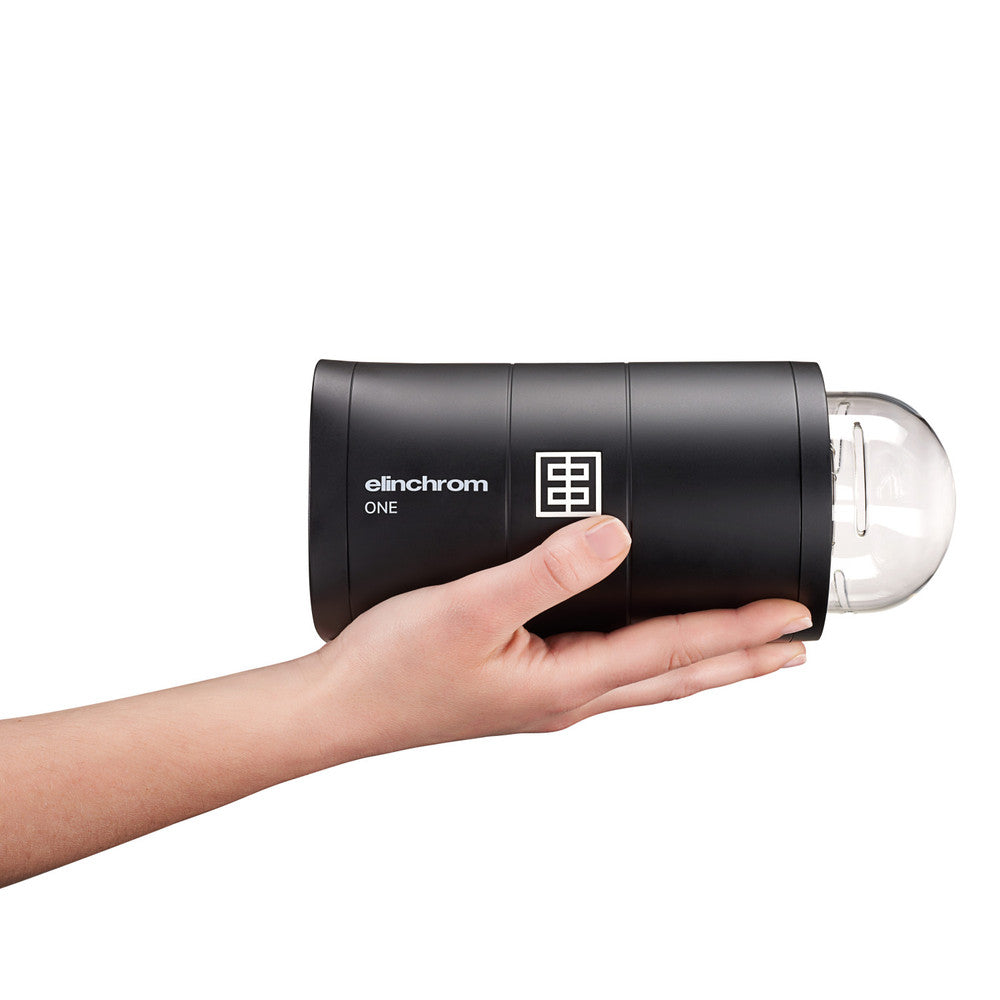

Add the versatility of an off-camera flash with light shaping capabilities to any kit while maintaining a minimal footprint with the Elinchrom ONE. Weighing only 3.3 lbs (1.5kg) and similar in size to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.

And Brave the Elements

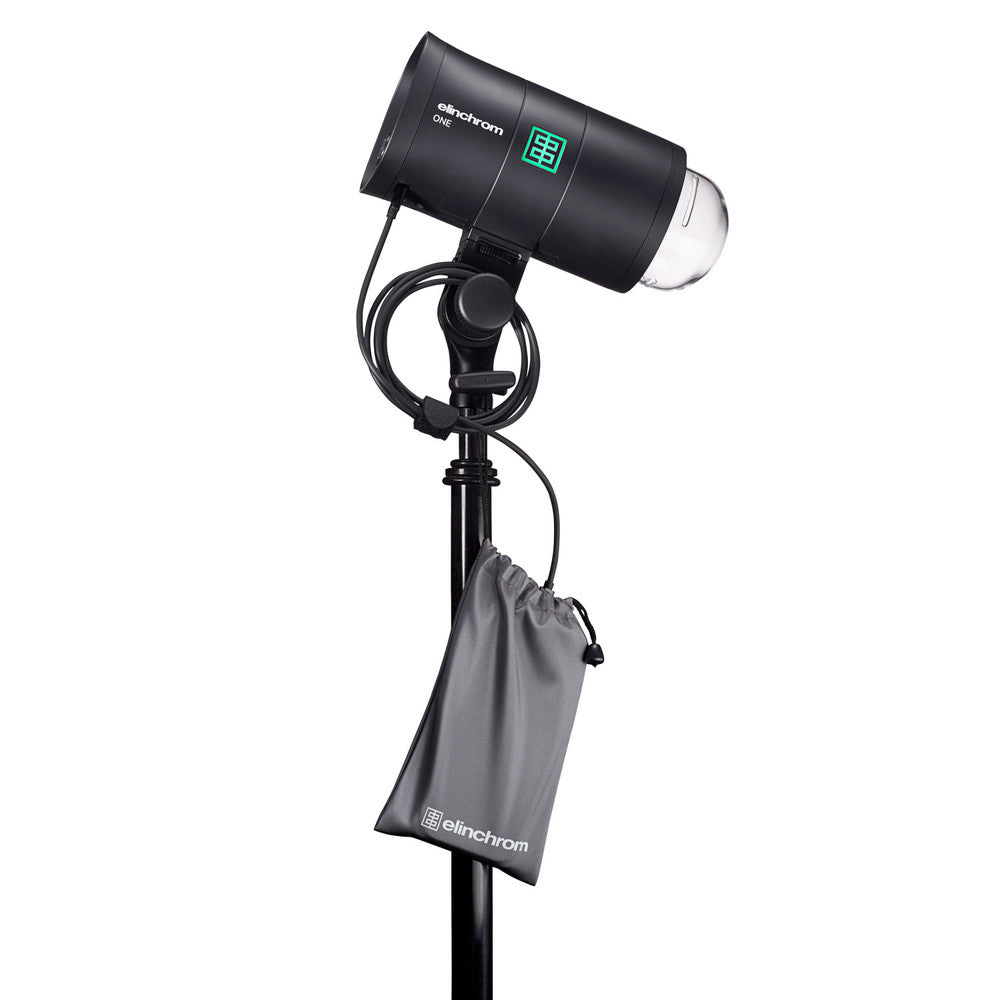

The Elinchrom ONE utilizes an internal li-ion battery for maximum portability and enhanced protection from the elements while on location. Plus, you are not tied to proprietary spare batteries or chargers with the ability to charge from any USB-C source.

Never Losing Momentum
Capable of producing 725 full-power flashes on a single charge, the Elinchrom ONE is ready for longer shoots. Additionally, with Active Charging, the ONE can be connected to a power source and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted.

So You Can Shape Your Story
Shaping light is at the heart of every great photo you create with the Elinchrom ONE. That's why it utilizes an unconcealed flash tube for optimal light spread, ensuring you experience the beautiful light quality Elinchrom is known for.

With Your Choice Of Light Modifiers
Utilizing the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with Profoto OCF light shapers, greatly expanding your selection of available light shaping tools. The included Elinchrom OCF Adapter enables quick mounting to speedrings and reflectors utilizing a traditional Elinchrom bayonet.

Doing More With Less
Engineered for peak efficiency, the Elinchrom ONE utilizes its 131 Ws of capacity to generate a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9 with the Diffusion Dome attached, and when combined with the HP Reflector 26 cm (10.2"), the achievable Fstop climbs to F-45.2.

And Always Navigating Swiftly

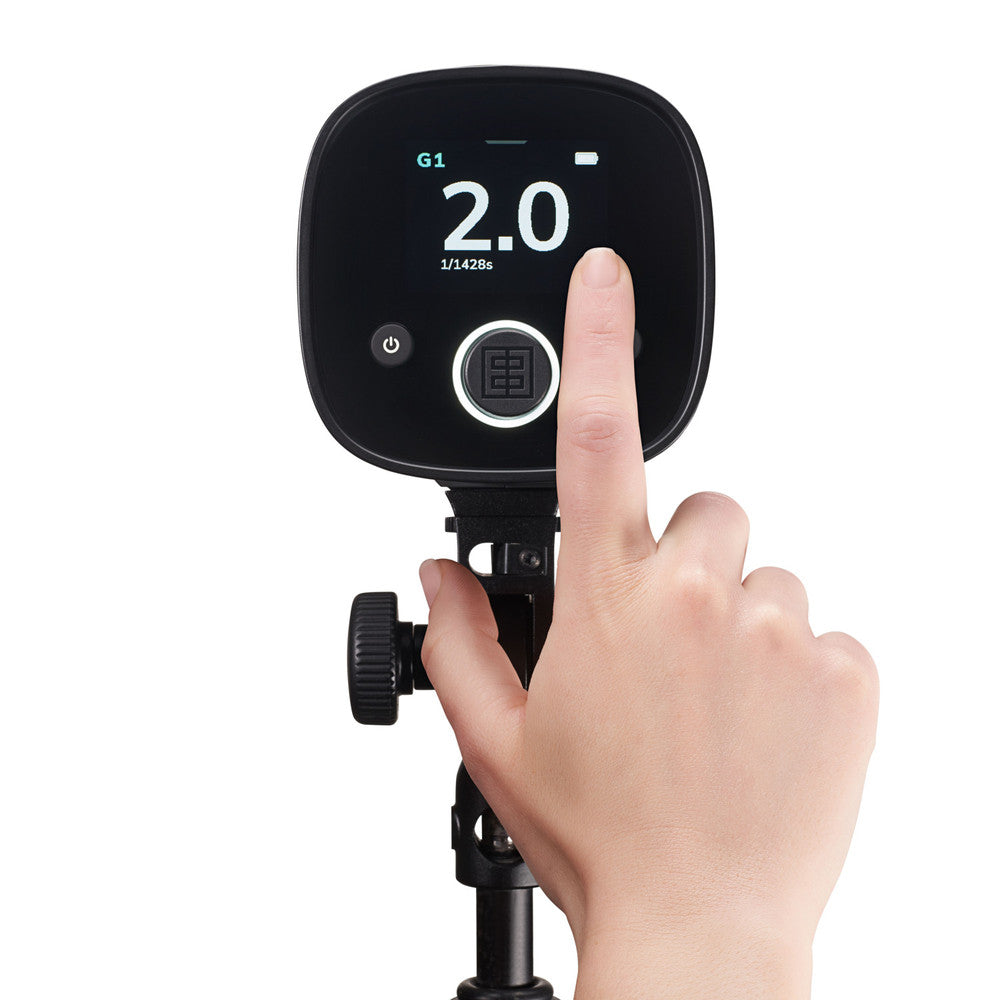

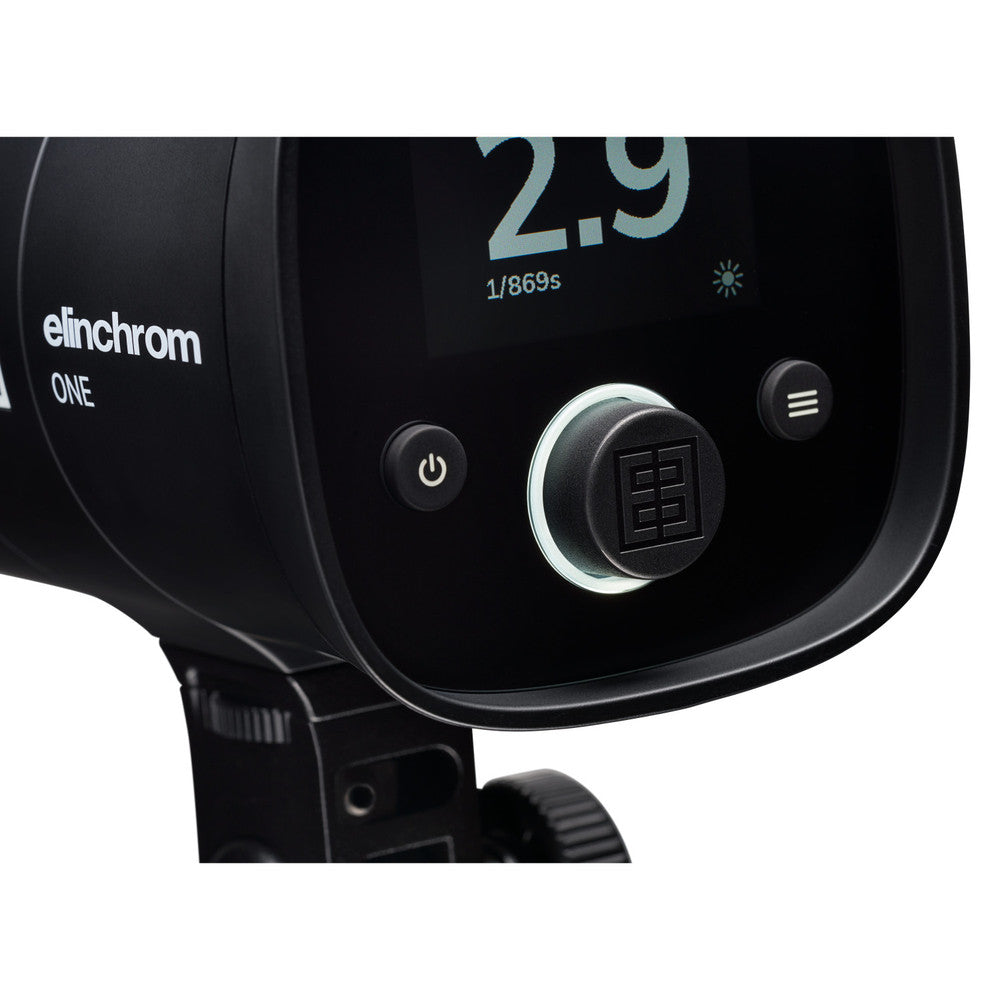

With a touchscreen interface and a newly designed menu structure, Elinchrom has streamlined the process of adjusting the One's settings to ensure you never miss a chance to capture a moment.

Features
  • KEEP A LOW PROFILE - Add the versatility of an off-camera flash with light shaping capabilities to any kit while maintaining a minimal footprint with the Elinchrom ONE. Weighing only 3.3 lbs (1.5kg) and similar in size 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.
  • AND BRAVE THE ELEMENTS - The Elinchrom ONE utilizes an internal li-ion battery for maximum portability and enhanced protection from the elements while on location. Plus, you are not tied to proprietary spare batteries or chargers with the ability to charge from any USB-C source.
  • NEVER LOSE MOMENTUM - Capable of producing 725 full-power flashes on a single charge, the Elinchrom ONE is ready for longer shoots. Additionally, with Active Charging, the ONE can be connected to a power source and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted.
  • SO YOU CAN SHAPE YOUR STORY - Shaping light is at the heart of every great photo you create with the Elinchrom ONE. That's why it utilizes an unconcealed flash tube for optimal light spread, ensuring you experience the beautiful light quality Elinchrom is known for. Utilizing the Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with Profoto® OCF light shapers, greatly expanding your selection of available light shaping tools.
  • AND DO MORE WITH LESS - Engineered for peak efficiency, the Elinchrom ONE utilizes its 131 Ws of capacity to generate a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9 with the Diffusion Dome attached, and when combined with the HP Reflector, the achievable Fstop climbs to F-45.2.
  •

    Specifications



    Elinchrom ONE

    Unit

    Energy 131 Ws/J
    F-Stop
    1m, 100 ISO, HP Reflector 26 cm, max power
    45.2
    F-Stop
    1m, 100 ISO, OCF Diffusion Dome, max power
    11.9
    Power range 5 F-Stop / 7 – 131 Ws
    Power increments
    Manual / TTL
    0.1 F-Stop / 0.3 F-Stop
    Power range display
    Elinchrom scale / 10 scale

    0.1 – 4.3 (Elinchrom scale) / 5.8 – 10 (10 scale)

    Best flash duration
    t0.1 min/max power (Normal mode)
    1/1530s – 1/155s
    Best flash duration
    t0.1 min/max power (Action mode)
    1/7000s – 1/625s
    Recycling time
    min/max power

    0.06s / 0.9s

    Flash mode

    Manual / TTL / HSS (with Transmitter Pro)

    Action mode

    Faster flash duration over the power range

    Flash colour temperature
    at max power

    5900 K (Action) / 5600 K (HSS)

    Flash colour stability
    over the power range, all modes
    ±150 K
    Power stability ±0.5 %
    Auto power dumping Automatic, real-time
    Fan cooled Smart proactive cooling
    Input USB-C
    Protection class IP20

    Elinchrom ONE

    Battery

    Battery Li-Ion – Built-in – 41.04Wh
    Battery capacity
    min/max power (LED lamp OFF)
    9700 / 725
    Battery capacity
    min/max power (LED lamp ON 100%)
    3700 / 550
    Battery charge status On the display if ON and side logo if OFF
    Charging time
    with 65W USB-C Wall Charger
    60 m (80%) – 100 m (100%)
    Charging time
    with 18W 20000 mAh Power Bank
    80 m (80%) – 135 m (100%) / Fast charge
    105 m (80%) – 180 m (100%) / Slow charge
    USB-C sources need to be able to deliver at least 25W for fast charge to be activated.

    Elinchrom ONE

    LED modeling lamp

    LED modes ON/OFF, free, proportional, VFC
    LED power
    20W / equivalent to 120W / 3000 lm / CRI 95
    LED color temperature Presets from 2700 K to 6500 K
    LED run time
    LED only, min/max power
    10 hours / 90 minutes

    Elinchrom ONE

    Radio

    Skyport
    built-in
    20 frequency channels, 4 Groups
    Skyport distance range
    Transmitter Pro, manual mode
    Indoor: up to 60 m / Outdoor: up to 200 m
    Bluetooth
    built-in
    Version 4.2 / Compatible Studio Software Win, Android, macOS, iOS

    Elinchrom ONE

    Size & dimensions

    Umbrella fitting
    on tilt head
    7 – 8 mm
    Dimensions
    with Diffusion Dome and tilt head
    23 x 16.5 x 10.5 cm
    9 x 6.5 x 4.1 inches
    Dimensions
    without Diffusion Dome and tilt head
    22.5 x 10 x 10 cm
    8.5 x 3.9 x 3.9 inches
    Weight
    with/without tilt head
    1.5 kg – 3.3 lbs / 1.3 kg – 2.9 lbs

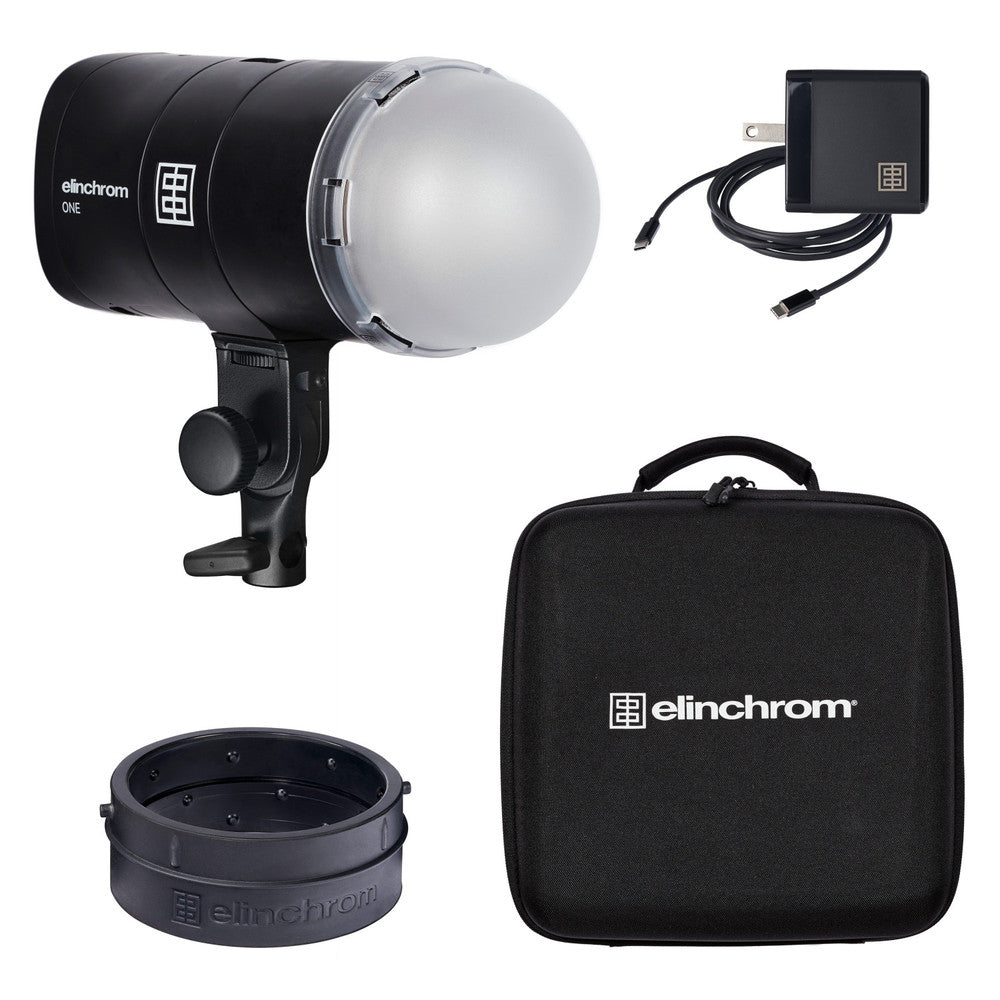

    Includes

    Elinchrom ONE Off Camera Flash Kit
    Elinchrom OCF Diffusion Dome
    Elinchrom OCF Adapter
    Elinchrom 65W USB Type-C Wall Charger with USB Type-C Cable (5.9')

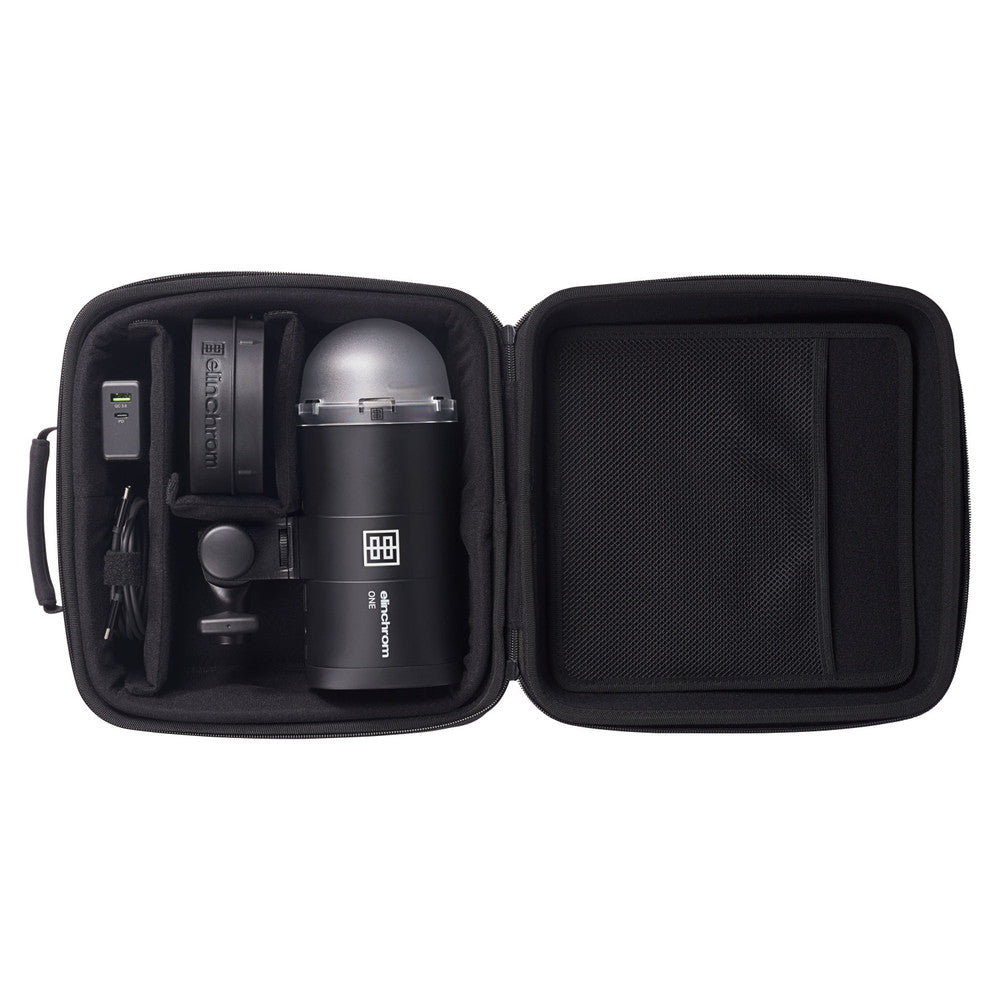

    Elinchrom Case for ONE Flash Head
    Limited 2-Year Warranty
