Saramonic UwMic9 2-Person Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
The Saramonic UwMic9 RX9+TX9+TX9 is a portable, dual-channel, camera-mountable UHF wireless system that provides stellar, broadcast-quality sound and enables you to use clip-on lavalier mics on two separate people while only requiring you to attach a single ultra-compact receiver to your camera. The Saramonic UwMic9 RX9+TX9+TX9 is a powerful and portable, dual-channel, camera-mountable UHF wireless system that provides stellar, broadcast-quality sound. It enables you to use clip-on lavalier mics on two separate people while only requiring you to attach a single ultra-compact receiver to your camera. This system is perfect for DSLRs, Mirrorless, Pro Video and all types of cameras or portable audio recorders with either 3.5mm, or XLR microphone input. Ideal for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and so much more. Every component features sturdy metal construction and delivers excellent sound quality in a low-cost package.
New features and functions, same remarkable price
The UwMic9 RX9+TX9+TX9 is the new generation of the immensely successful UwMic9 system. It now features 12-step input level control on the TX9 transmitters, an updated operating system, and an updated black trim around the LED displays, for an even more sleek, professional look and now includes the 3.5mm to Dual XLR output cable for professional cameras, that was previously sold separately for $39.00. All for the same price as the original. The UwMic9 RX9+TX9+TX9 is a high-quality system with professional features, excellent sound quality, and an unbeatable budget-friendly price.
Simple to use, but with the professional features you need
The UwMic9 is remarkably easy to use and it works right out of the box. You just plug in the mics, turn on the power and go. It utilizes the UHF (Ultra High Frequency) spectrum, which helps you avoid interference, and its 514-596 MHz range is not impacted by the FCC’s ban of the 600 MHz frequencies. An automatic-scan feature locates the best available channel for you and the infrared synchronization makes the process a snap. There are 2 banks of 96 channels available, which enables you to run multiple sets of UwMic9 systems at the same time without issues. Easy-to-read backlit LCD displays on both of the transmitters and the receiver let you make quick adjustments to the intuitive menus in the brightest or darkest environments. The RX9 receiver also includes a headphone output, enabling real-time audio monitoring which is vital if your camera lacks a headphone output.
Power, Range, Flexibility and Function
Offering features and capabilities that are unheard of for a wireless system in this price range. The system has an impressive operating range of up to 330-feet (100m), giving users the range, and power they need for professional applications. The TX9 belt pack transmitters features a 12-step input level control, allowing users to dial in the gain level for their needs and can also be used to transmit line-level audio, such as an output from a mixer. They also feature a High/Medium/Low RX transmission power output setting, allowing users to conserve batteries in controlled recording environments. Because the TX9s are wired with the standard 3.5mm TRS pin-out, allowing for use with hundreds of lavalier, headset, instrument and gooseneck microphones. Including the premium-quality Saramonic DK3 Lavalier, water-proof DK5 Lavalier, DK6 low-profile headset mic, or the UMIC-M2 mini-gooseneck mic. The TX9s also feature a handy muting feature if the person wearing the clip-on lavalier microphone needs privacy, and a flashing red LED reminds you to unmute it afterward. And the TX9 transmitters and RX9 receiver both have a power-locking feature to prevent them from accidentally being turned off when in use.
Versatility for any camera, or any set-up
Locking 3.5mm mini-plug and Dual XLR output cables are both included so you can use the UwMic9 system with DSLRs, mirrorless cameras, cinema cameras, camcorders, professional video cameras, action cameras, audio recorders, mixers and much more. If your recording device has either a 3.5mm or XLR microphone input, you are ready to go out of the box. And the system can be easily adapted to be used with smartphones, tablets, computers, and even more with one of Saramonic’s inexpensive and innovative audio adapters and cables.
Expandable and Backwards Compatible
Another great benefit is that the UwMic9 system is expandable and backwards compatible. Optional transmitters and output cables (sold separately) are available, giving you unrivaled flexibility. Additional transmitters make it possible to add a wireless handheld microphone with the HU9 Handheld Microphone transmitter, or the TX-XLR9 wireless Plug-On XLR transmitter allows you to use any XLR microphone wirelessly, condenser or dynamic. Saramonic also has an expansive series of adapters and cables to connect the included RX9 receiver to smartphones, tablets, computers, and so much more. And if you have an older UwMic9 component, transmitter or system with the yellow trim, no need to worry, the UwMic9 series is complete backwards compatible. Allowing you to seamlessly add a UwMic9 system to your existing older UwMic9 system, transmitter or components.
- Complete two-person UHF wireless lavalier microphone kit with a single, dual-channel camera-mountable receiver that provides reliable broadcast-quality sound
- New updated system design now features input level controls on transmitters, dual XLR output cable included, newest operating system and sleek, professional new look
- Easy-to-use, right out of the box with plug-and-play operation, durable all-metal construction and easy-to-read backlit LCD displays
- Compact receiver features a built-in headphone output so you can always monitor your sound — even when your camera lacks a headphone jack
- Offers up to 330-foot (100m) operating distance with auto-scan feature finds the best channels for you and infrared makes it easy to sync channels
Specifications
RX9 Receiver
Channels: 96 selectable channels in 2 groups (A and B)
Wireless Frequency Range: 514MHz - 596MHz
Oscillator Type: PLL synthesizer
Output: Locking 3.5mm TRS mini-jack
Antenna: 1/4 λ wire antenna
Audio Output Level: -60dBV
Headphone Output Level: 30mW (16 ohm)
Sensitivity: -95dBm
Signal to Noise Ratio: 70dB or more
Voice Delay: 12ms
Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
Frequency Response: 40Hz to 18kHz (±3dB)
Distortion: 0.5% or less
Spur Suppression: -60dB
Batteries: 2 LR6/AA size batteries
Dimensions: 6.73 x 2.5 x 1.18” (170.9 x 63.5 x 30.0mm)
Weight: 7.72oz (218.7g) (without batteries)
TX9 Transmitters
Channels: 96 selectable channels in 2 groups (A and B)
Wireless Frequency Range: 514MHz - 596MHz
Oscillator Type: PLL synthesizer
Input: Locking 3.5mm TRS mini-jack
Reference audio input level: –60dBV (MIC input 0dB attenuation)
Antenna: 1/4 λ wire antenna
Signal to Noise Ratio: 70dB or more
Voice Delay: 12ms
Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
Frequency Response: 40Hz to 18kHz (±3dB)
Distortion: 0.5% or less
Spur Suppression: -60 B
Batteries: 2 LR6/AA size batteries
Dimensions: 6.73 x 2.5 x 1.18” (170.9 x 63.5 x 30.0mm)
Weight: 7.46oz (211.4g) (without batteries)

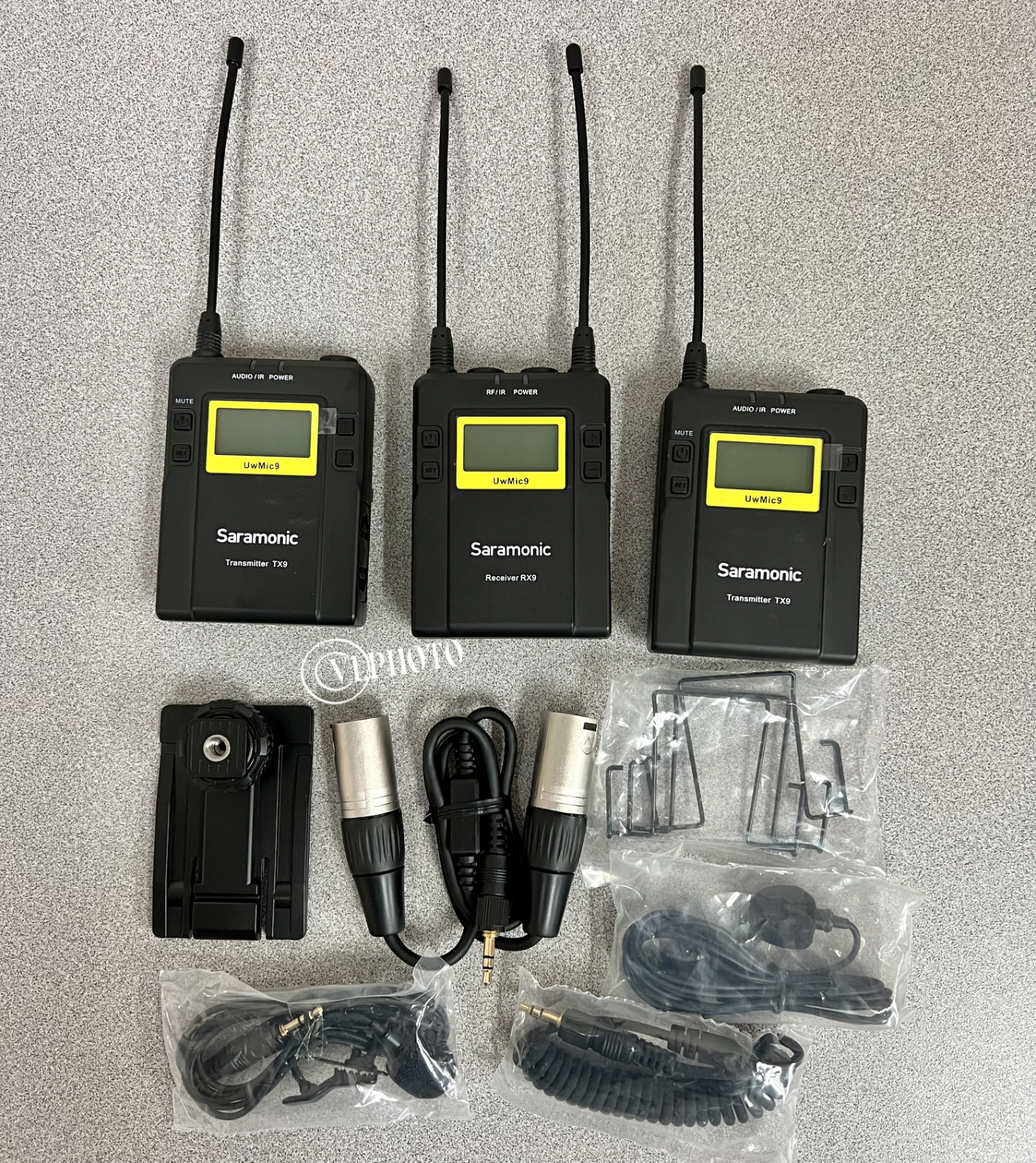

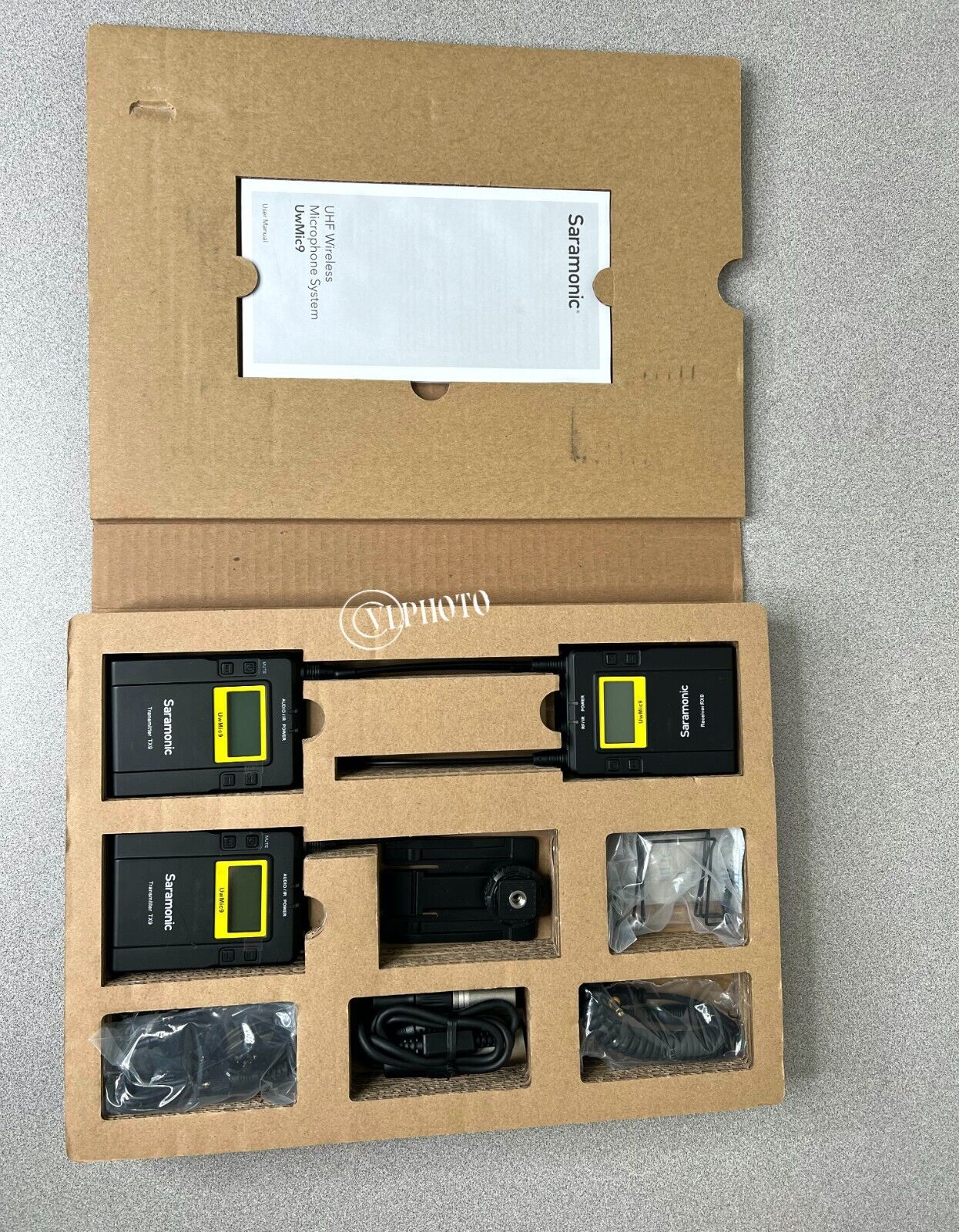

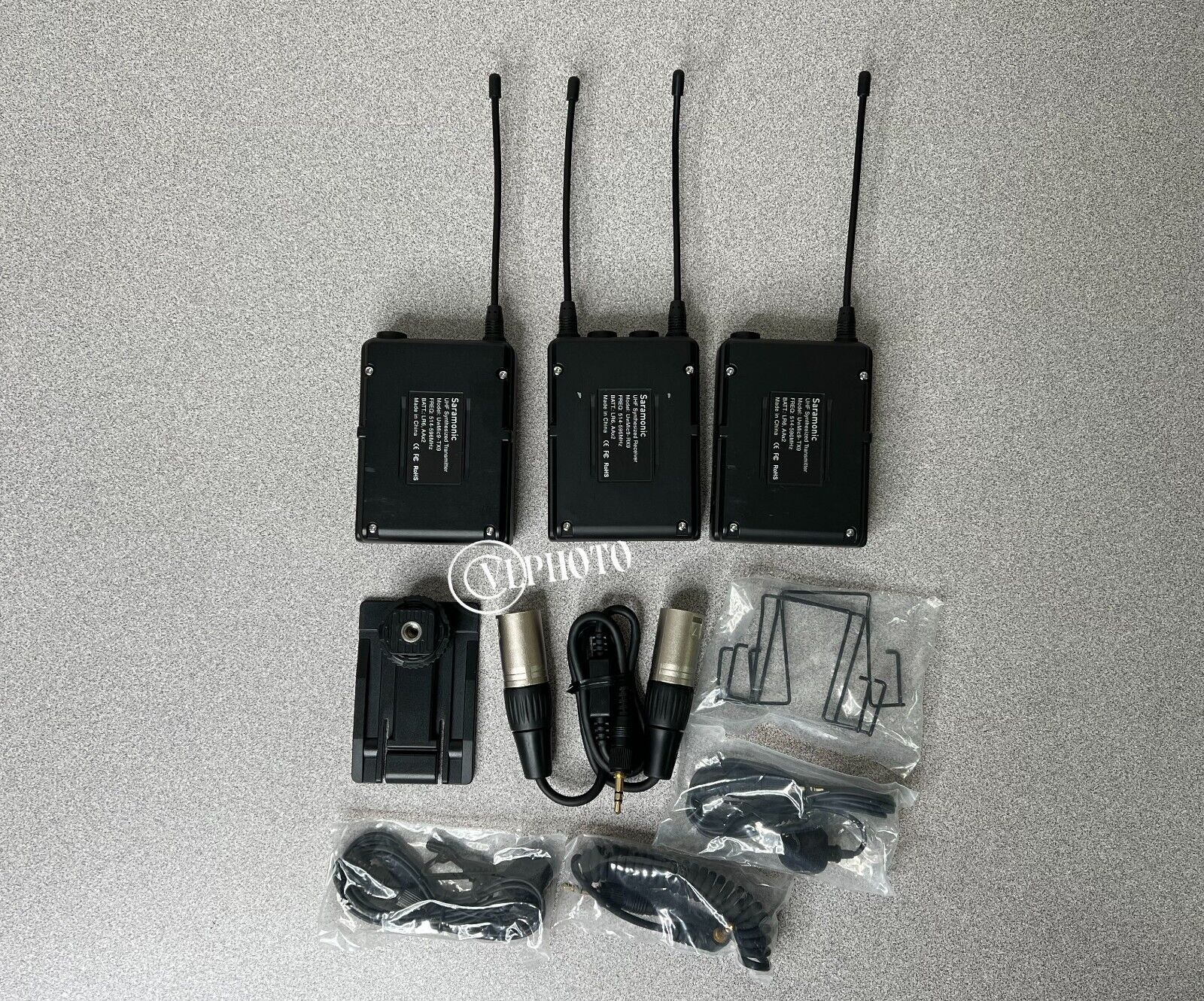

Includes
1 x RX9 dual-channel portable UHF wireless receiver
2 x TX9 UHF wireless belt-pack transmitters

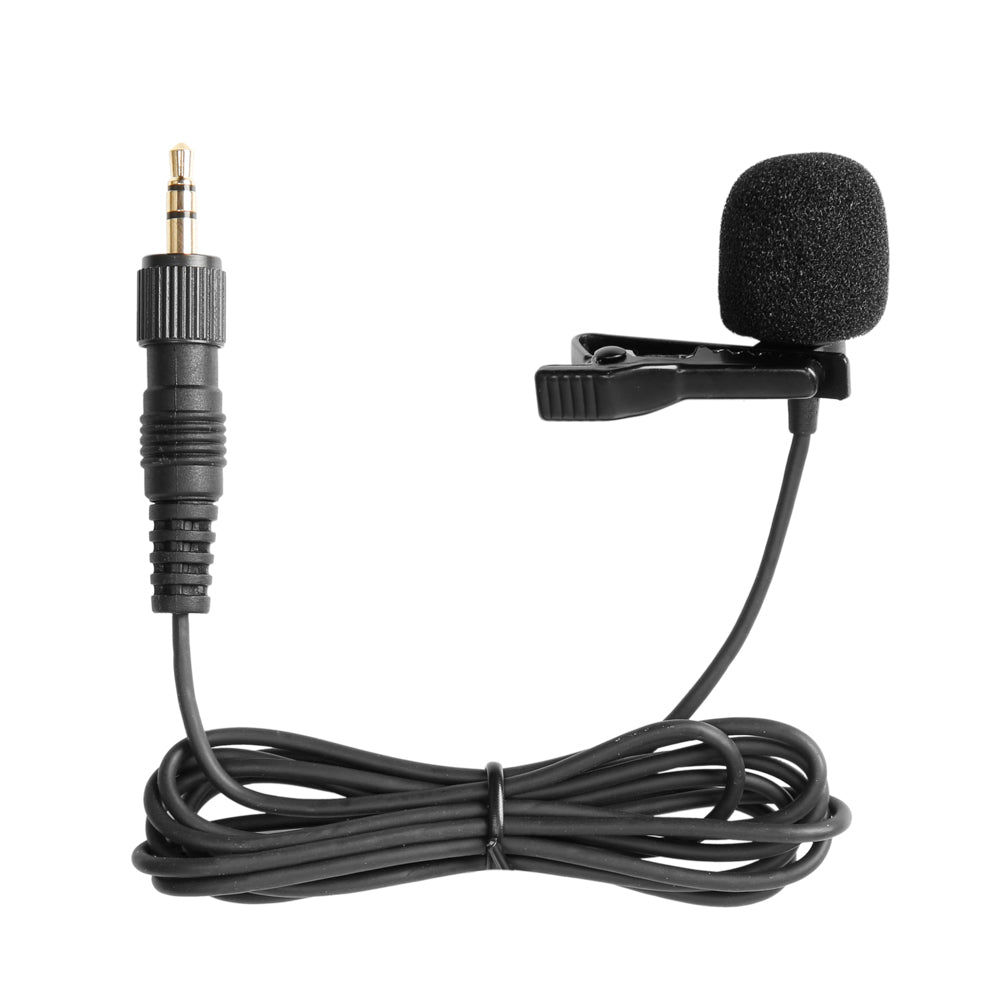

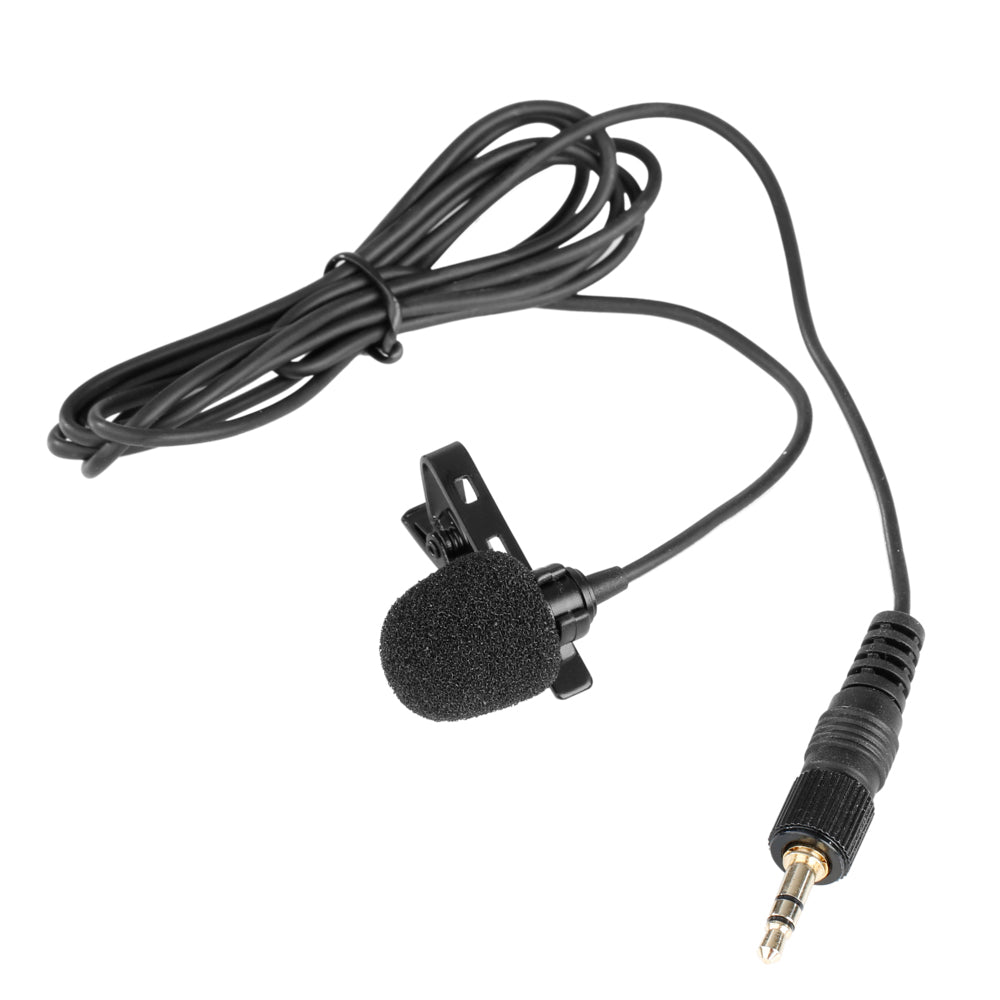

2 x SR-M1 omnidirectional lavalier microphones
2 x Alligator-style lavalier mic clips

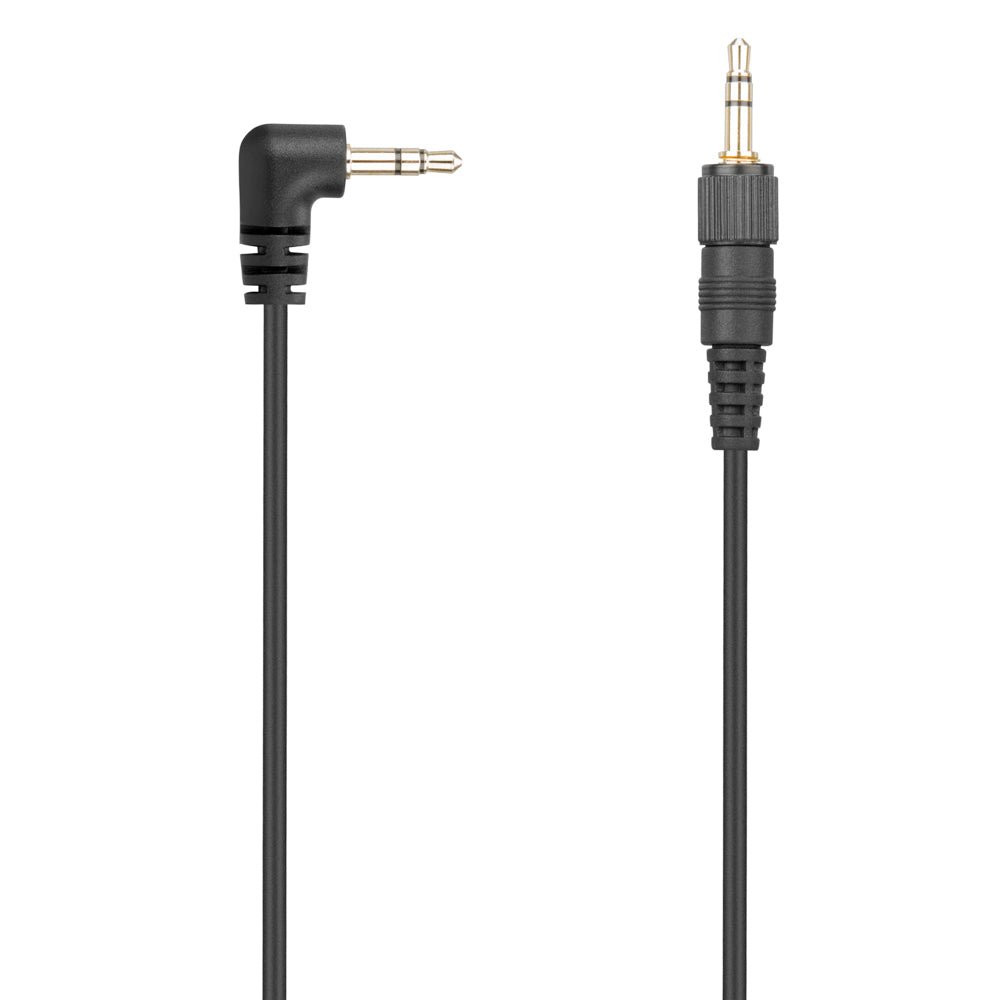

1 x Short coiled locking mini-plug output cable with gold-plated connectors
1 x Short locking gold-plated mini-plug to XLR male output cable
1 x Camera shoe mount with an integrated 1/4 20 tripod thread
3 x Removable belt clips
3 x SR-UMBC1 battery compartments
1 x Printed manual
1 x Warranty card
Optional Accessories (Sold Separately):
- TX-XLR9 Transmitter: XLR Plug-on Transmitter with +48V phantom power
- HU9 Transmitter: Wireless Handheld Microphone
- LC-C35 Output Cable: Locking 1/8” (3.5mm) to Lightning cable for iPhone & iPad
- UTC-C35 Output Cable: Locking 1/8” (3.5mm) to USB Type-C cable for smartphone or tablets
- SR-PMC1 Output Cable: Locking 1/8” (3.5mm) to TTRS cable for Smartphone or Tablets
- SR-UM10-CC1 Output Cable: Locking 1/8” (3.5mm) to Dual XLR cable
- USB-CP30 Output Cable: Locking 1/8” (3.5mm) to USB cable PC or Mac computers
- SR-GMC1 Output Cable: Locking 1/8” (3.5mm) to select GoPro cameras
- LM-WS Fur Windjammer for SR-M1 Lavalier 3-Pack
- SR-LMWS3 Replacement Foam Windscreens 3-Pack
- WM4C-MC1 Replacement Mic Clip
- SR-XM1 Swiveling Omnidirectional Condenser Microphone
- SR-UMBC1 Replacement Battery Compartment
- SR-UM10-MC2 Replacement Belt Clip
- SR-UM10-MC1 Replacement Shoe-Mount Adapter
- SR-UM10-C35XLR Replacement Locking type 1/8” (3.5mm) to XLR Male Output Cable
- SR-UM10-C35 Replacement Locking type 1/8” (3.5mm) to 1/8” (3.5mm) Output Cable
- SR-UM10-M1 Replacement SR-M1 Lavalier
- SR-UC-201 3.5mm Female TRS Microphone Adapter Cable to 3.5mm Male TRRS for smartphone or tablets
- SR-25C35 3.5mm to 2.5mm Microphone Output Cable for SSE with Fuji Cameras
