Elinchrom ONE Off Camera Flash Kit
Always be ready when inspiration strikes with the supremely compact and lightweight Elinchrom ONE. Weighing only 3.3 lbs (1.5kg), the ONE merges 131 Ws of capacity with features including an integrated Li-ion battery, USB-C Active Charging, TTL, HSS, and a streamlined touch interface into a low profile housing. A portable, rugged and dependable off-camera flash equipped for your next adventure. Wherever that may be.
Keep a Low Profile
Add the versatility of an off-camera flash with light shaping capabilities to any kit while maintaining a minimal footprint with the Elinchrom ONE. Weighing only 3.3 lbs (1.5kg) and similar in size to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.
And Brave the Elements
The Elinchrom ONE utilizes an internal li-ion battery for maximum portability and enhanced protection from the elements while on location. Plus, you are not tied to proprietary spare batteries or chargers with the ability to charge from any USB-C source.
Never Losing Momentum
Capable of producing 725 full-power flashes on a single charge, the Elinchrom ONE is ready for longer shoots. Additionally, with Active Charging, the ONE can be connected to a power source and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted.
So You Can Shape Your Story
Shaping light is at the heart of every great photo you create with the Elinchrom ONE. That's why it utilizes an unconcealed flash tube for optimal light spread, ensuring you experience the beautiful light quality Elinchrom is known for.
With Your Choice Of Light Modifiers
Utilizing the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with Profoto OCF light shapers, greatly expanding your selection of available light shaping tools. The included Elinchrom OCF Adapter enables quick mounting to speedrings and reflectors utilizing a traditional Elinchrom bayonet.
Doing More With Less
Engineered for peak efficiency, the Elinchrom ONE utilizes its 131 Ws of capacity to generate a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9 with the Diffusion Dome attached, and when combined with the HP Reflector 26 cm (10.2"), the achievable Fstop climbs to F-45.2.
And Always Navigating Swiftly

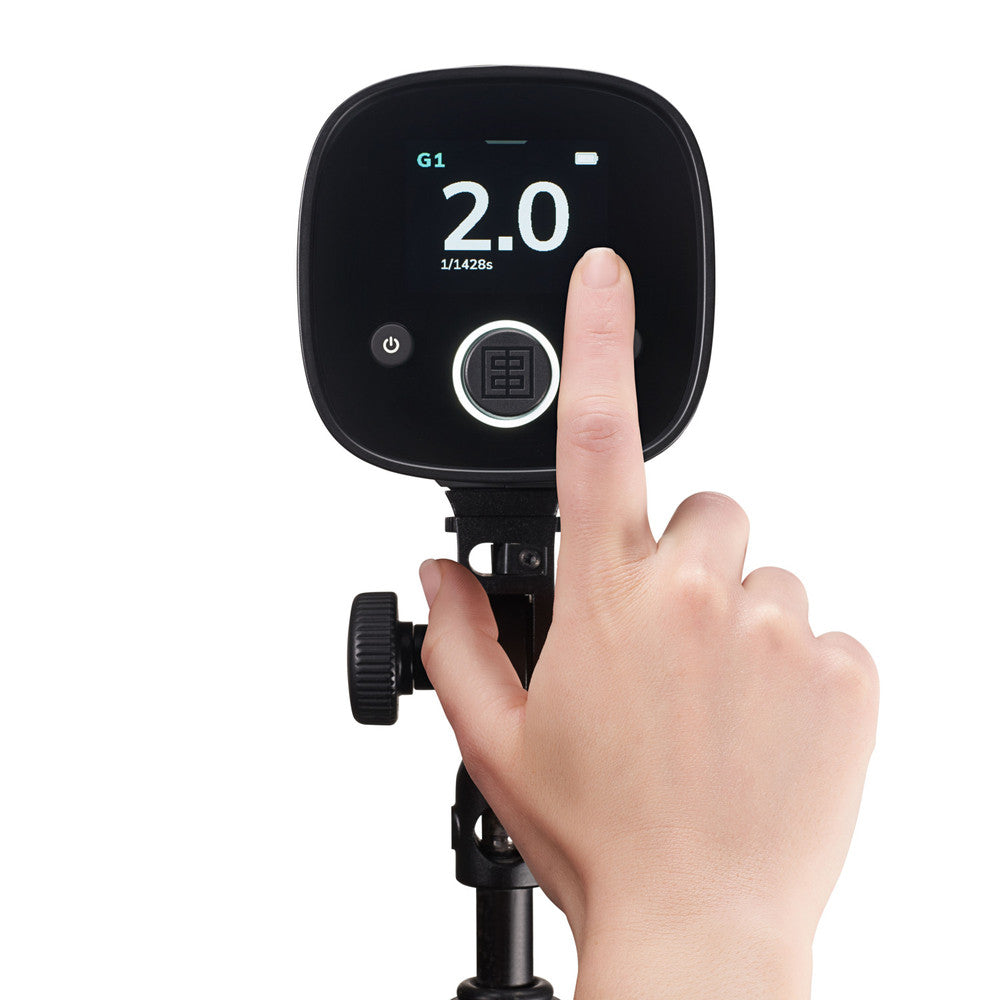

With a touchscreen interface and a newly designed menu structure, Elinchrom has streamlined the process of adjusting the One's settings to ensure you never miss a chance to capture a moment.
Features
Specifications
Elinchrom ONE |
Unit |
| Energy | 131 Ws/J |
| F-Stop 1m, 100 ISO, HP Reflector 26 cm, max power |
45.2 |
| F-Stop 1m, 100 ISO, OCF Diffusion Dome, max power |
11.9 |
| Power range | 5 F-Stop / 7 – 131 Ws |
| Power increments Manual / TTL |
0.1 F-Stop / 0.3 F-Stop |
| Power range display Elinchrom scale / 10 scale |
0.1 – 4.3 (Elinchrom scale) / 5.8 – 10 (10 scale) |
| Best flash duration t0.1 min/max power (Normal mode) |
1/1530s – 1/155s |
| Best flash duration t0.1 min/max power (Action mode) |
1/7000s – 1/625s |
| Recycling time min/max power |
0.06s / 0.9s |
| Flash mode |
Manual / TTL / HSS (with Transmitter Pro) |
| Action mode |
Faster flash duration over the power range |
| Flash colour temperature at max power |
5900 K (Action) / 5600 K (HSS) |
| Flash colour stability over the power range, all modes |
±150 K |
| Power stability | ±0.5 % |
| Auto power dumping | Automatic, real-time |
| Fan cooled | Smart proactive cooling |
| Input | USB-C |
| Protection class | IP20 |
Elinchrom ONE |
Battery |
| Battery | Li-Ion – Built-in – 41.04Wh |
| Battery capacity min/max power (LED lamp OFF) |
9700 / 725 |
| Battery capacity min/max power (LED lamp ON 100%) |
3700 / 550 |
| Battery charge status | On the display if ON and side logo if OFF |
| Charging time with 65W USB-C Wall Charger |
60 m (80%) – 100 m (100%) |
| Charging time with 18W 20000 mAh Power Bank |
80 m (80%) – 135 m (100%) / Fast charge 105 m (80%) – 180 m (100%) / Slow charge USB-C sources need to be able to deliver at least 25W for fast charge to be activated. |
Elinchrom ONE |
LED modeling lamp |
| LED modes | ON/OFF, free, proportional, VFC |
| LED power |
20W / equivalent to 120W / 3000 lm / CRI 95 |
| LED color temperature | Presets from 2700 K to 6500 K |
| LED run time LED only, min/max power |
10 hours / 90 minutes |
Elinchrom ONE |
Radio |
| Skyport built-in |
20 frequency channels, 4 Groups |
| Skyport distance range Transmitter Pro, manual mode |
Indoor: up to 60 m / Outdoor: up to 200 m |
| Bluetooth built-in |
Version 4.2 / Compatible Studio Software Win, Android, macOS, iOS |
Elinchrom ONE |
Size & dimensions |
| Umbrella fitting on tilt head |
7 – 8 mm |
| Dimensions with Diffusion Dome and tilt head |
23 x 16.5 x 10.5 cm 9 x 6.5 x 4.1 inches |
| Dimensions without Diffusion Dome and tilt head |
22.5 x 10 x 10 cm 8.5 x 3.9 x 3.9 inches |
| Weight with/without tilt head |
1.5 kg – 3.3 lbs / 1.3 kg – 2.9 lbs |
Includes
Elinchrom ONE Off Camera Flash Kit
Elinchrom OCF Diffusion Dome
Elinchrom OCF Adapter
Elinchrom 65W USB Type-C Wall Charger with USB Type-C Cable (5.9')
Elinchrom Case for ONE Flash Head
Limited 2-Year Warranty
