Elinchrom EL10310.1 ELB 500 TTL Off Camera Flash Dual To Go Kit - Demo
Elinchrom ELB 500 TTL Off Camera Flash Dual To Go Kit
The ELB 500 TTL: Creativity, Unencumbered. Stay Focused on Storytelling, Regardless of the Situation Be prepared for any adventure with the portable and incredibly efficient Elinchrom ELB 500 TTL. Combining 500 Ws of power with features including TTL, HSS, Active Charging, and Full Asymmetry all in a package weighing only 8lbs, this robust off-camera flash enables you to create freely in the studio, on location, or even on the move. Travel Light Weighing only 1.5lbs, the ELB 500 TTL's Flash Heads can be easily boomed out by hand or with minimal counterweight. The compact design eliminates the need for heavy-duty stands and enables the ELB 500 TTL to be comfortably worn by an assistant. And Stretch Your Imagination Achieve sync speeds of up to 1/8000ths of a second using High-Speed Sync to freeze motion with incredible sharpness, create a narrow depth of field, or overpower the sun. With Independent Remote Control of Up To Two Flash Heads Take full advantage of the ELB 500 TTL's fully asymmetric power distribution with an Elinchrom Skyport Transmitter Pro. Now you can independently adjust each head's power across their seven-stop range and control the modeling lamps from atop your camera. So You Can Master Your Workflow The ELB 500 TTL lets you compose images at the speed of life. Use TTL to set an exposure quickly and then use Manual Lock to switch to manual mode without losing your initial exposure for further adjustment or to explore creative effects. Never Lose Momentum The ELB 500 TTL's Active Charging enables you to plug into AC power and charge the battery mid-shoot regardless of the batteries' charge level, making it perfect for an uninterrupted workflow. And Transform Your Lighting ELB 500 TTL flash heads utilize Elinchrom's Q-Mount (formerly known as Quadra Mount) for seamless compatibility with Elinchrom's line of super-portable Snaplux series of softboxes. They can work with any other Elinchrom light modifiers and accessories, including Rotalux and Litemotiv softboxes, via the Quadra Reflector Adapter MK-II (EL26342) sold separately. With Advanced Battery Technology The Elinchrom ELB 500 TTL Battery is s 14.4V, 5Ah, 72 Wh Li-Ion battery designed to be used exclusively with the ELB 500 TTL. This battery can generate 400 full-power flashes from one charge and a fast recycling time of 2 seconds at max power. It was engineered to have no memory effect, meaning charging to be started or stopped at any level with no negative impact.
Features
- STAY FOCUSED ON STORYTELLING, REGARDLESS OF THE SITUATION - The ELB 500 TTL Off Camera Flash combines 500 Ws of power with features including TTL, HSS, Active Charging, and Full Asymmetry all in a package weighing only 8lbs, enabling you to create freely in the studio, on location, or even on the move.
- TRAVEL LIGHT - Weighing only 1.5lbs, the ELB 500 TTL's Flash Heads can be easily boomed out by hand or with minimal counterweight. The compact design also eliminates the need for heavy-duty stands and even enables the ELB 500 TTL to be comfortably worn by an assistant.
- AND STRETCH YOUR IMAGINATION - Achieve sync speeds of up to 1/8000ths of a second using High-Speed Sync to freeze motion with incredible sharpness, create a narrow depth of field, or overpower the sun.
- WITH INDEPENDENT REMOTE CONTROL OF TWO FLASH HEADS - Take full advantage of the ELB 500 TTL's fully asymmetric power distribution with an Elinchrom Skyport Transmitter Pro (Sold Separately). Now you can independently adjust each head's power across their seven-stop range and control the modeling lamps from atop your camera.
- WHILE NEVER LOSE MOMENTUM - The ELB 500 TTL's 14.4V, 5Ah, 72Wh Li-Ion battery can generate 400 full-power flashes from one charge. Plus, with Active Charging, you can plug into AC power and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted.
Specifications
| AC Input Voltage: | Auto Sensing 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| App Compatible: | Via Skyport Bridge EL19340 |
| Auto Dump: | Yes |
| Battery Capacity (mAh): | 5Ah |
| Battery Capacity (Wh): | 72Wh |
| Battery Chemistry: | Li-Ion |
| Battery Included: | Yes |
| Battery Maximum Output Voltage: | 14.4v |
| Battery Required: | Yes |
| Battery Type: | Li-Ion |
| Channels: | 20 |
| Closure Type: | Zipper |
| Color Temperature (Kelvin): | 5500K |
| Color Temperature Variance: | +/- 200K |
| Display: | OLED |
| Fan Cooled: | No |
| Flash Head Cable Length: | 8ft |
| Flash Modes: | Normal, Action |
| Flash Tube User Replaceable: | No |
| Flashes Per Charge (Max Power): | 400 |
| Flashes Per Charge (Min Power): | 28000 |
| Groups: | 4 |
| Guide Number: | f/64.8 with 48° reflector 1 m and ISO 100 |
| Hi-Sync Compatible: | No |
| High Speed Sync Compatible: | Yes with Skyport Transmitter Pro |
| Includes Rechargeable Battery: | Yes |
| Light Modifier Bayonet Mount: | Elinchrom Q-Mount Elinchrom Full Size Bayonet Requires Adapter EL26342 |
| Max Power (Ws): | 500Ws |
| Max Sync Speed: | 1/8000th sec |
| Physical: | |
| Min. Power (Ws): | 7Ws |
| Modeling Lamp Color Temp: | 5200 K |
| Modeling Lamp CRI: | 90 |
| Modeling Light Control: | On / Off, free, prop, timer 1-60 s, VFC |
| Modeling Light Dimmable: | 40 Steps |
| Modeling Light Type: | LED |
| Mount: | Standard 5/8 in Receiver |
| Power Control Increments in F-Stop, Manual Mode: | 1/10th |
| Power Distribution (A and B Ports): | Full Asymmetry |
| Power Range in F-stops: | 7 |
| Power Stability: | +/- 0.1% |
| Product Height (cm): | 18.1cm |
| Product Height (in): | 7.13in |
| Product Length (cm): | 16.3cm |
| Product Length (in): | 6.42in |
| Product Weight (kg): | 9.94kg |
| Product Weight (lb): | 0.37lb |
| Product Width (cm): | 9.0cm |
| Product Width (in): | 3.54in |
| Recharge Time to 100%: | 1.4hr |
| Shortest Flash Duration at Power Setting: | 7.1 Ws in Action Mode |
| Sync Socket Type: | 3.5mm PC Sync |
| Sync Type: | Wireless, Optical, Cable |
| Umbrella Shaft Mount: | 7mm Shaft on Tilt Head 8mm Shaft Requires Adapter EL26342 |
| Wireless Frequency Band: | 2.4ghz |
| Wireless Range: | 656ft/220m Radio |
| Wireless Transceiver: | Built in Skyport/Phottix Odin 2 |
Includes
- Elinchrom ELB 500 TTL
- Elinchrom Li-Ion Battery for ELB 500 TTL
- Elinchrom Battery Charger for ELB 400 and ELB 500 TTL
- Multi-Plug Adapter Set
- Mains Supply Power Cable
- 2 x Elinchrom ELB 500 TTL Flash Head
- 8' Cable
- Flash Tube
- Protective Cap

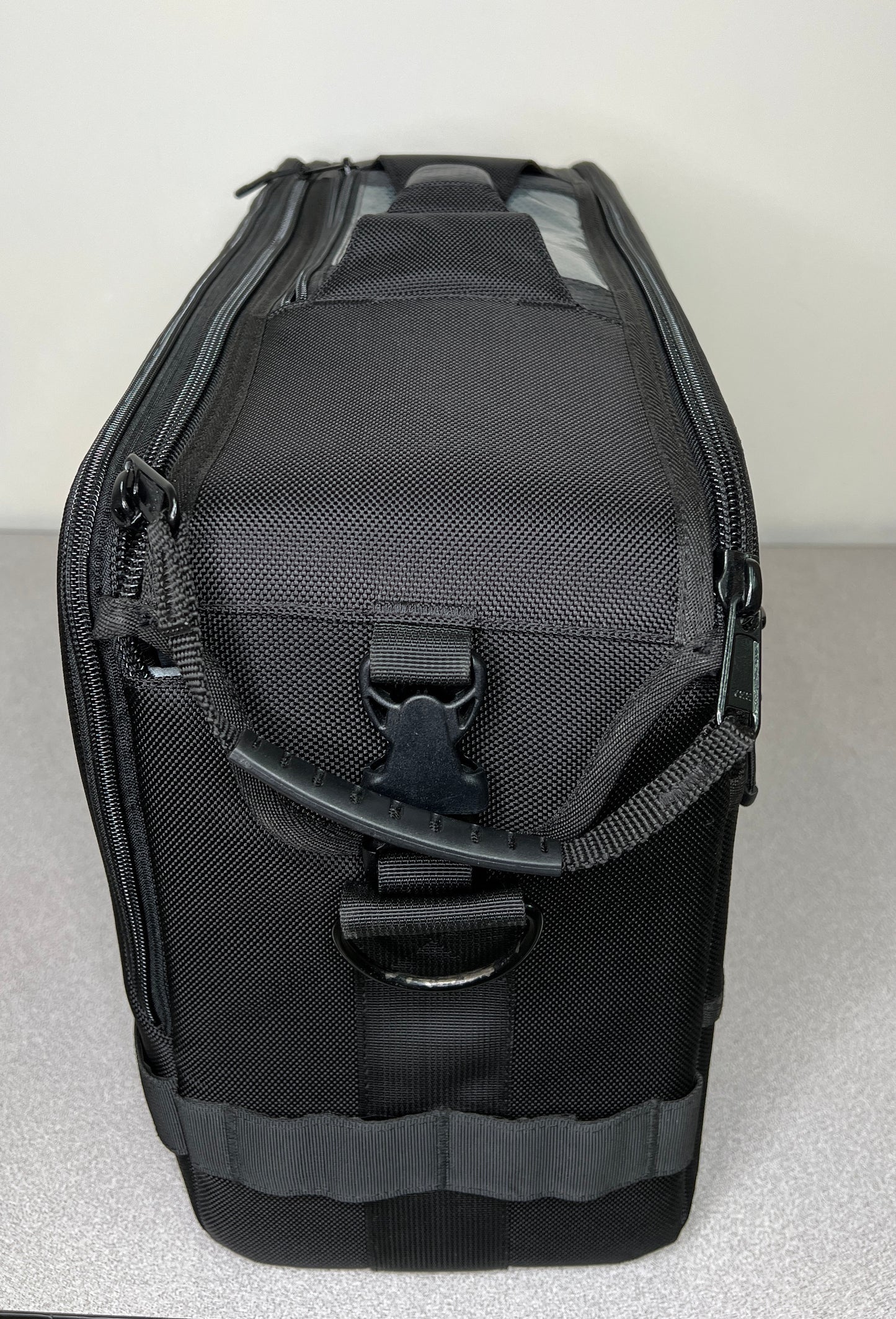

- Elinchrom Snappy Carry Bag with Shoulder Strap for ELB 500 TT
- Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads
- Elinchrom ProTec Location Bag
- Shoulder Strap
- Elinchrom 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head
- Sync Cord
- Limited 2-Year Manufacturer Warranty
