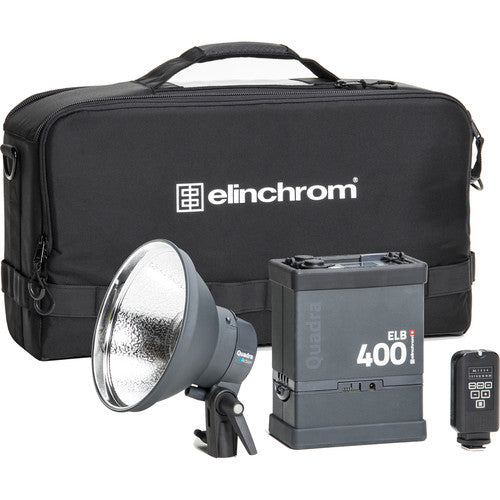

Elinchrom ELB 400 Action To Go Kit
Freeze action on location and from afar with the ELB 400 Action To Go Kit from Elinchrom. This kit packs together the portable, battery-powered ELB 400 Quadra Pack with the Quadra Action head to reach an outstanding flash duration up to 1/5700 second. These revamped kits also bundle in the 7" Quadra Grid Reflector which provides an additional boost to light output and the EL-Skyport Transmitter Plus, which can remotely control and trigger your strobe from up to 656' away. Additionally, it comes with a ProTec Location Bag that can protect and organize all of your gear during transport and storage.
Designed for both power and portability, the ELB 400 Quadra Pack is run off a rechargeable Li-ion battery that can deliver an impressive 424 Ws of power while keeping the weight to just 2.8 lb. The pack can also recycle as fast as 1.6 seconds at full power and works with the Quadra Action Flash Head to reach flash durations as short as 1/5700 second to freeze action. The ELB 400 is also characterized by its integrated EL-Skyport receiver, which is compatible with the included EL-Skyport Transmitter Plus for wireless remote triggering and power control from up to 656' away. This transmitter allows you to trigger and set flash power for up to four groups, as well as an ALL groups setting, and 16 different channels, which are split between eight normal channels and eight hi-speed channels. A locking metal accessory shoe connector allows you to secure the transmitter directly to a camera, a top hot shoe and a 2.5mm sync port are available for directly connecting an additional strobe, and a swiveling design helps to improve reception for more direct transmission.

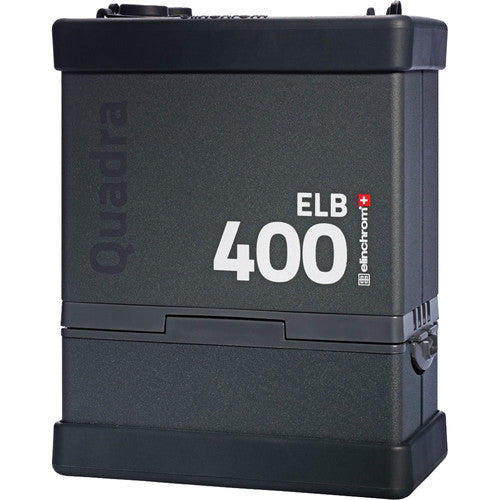

Elinchrom ELB 400 Quadra Power Pack with Battery
Exceptionally compact, the ELB 400 Quadra Power Pack from Elinchrom provides a portable flash option for users of Quadra heads. Its size makes it easy to carry around, either on a belt or using the included shoulder strap. It boasts a 424Ws output and 6.9-stop power range as well as asymmetrical 2:1 outlets for two flash heads. Another advantage of this system is the integrated EL-Skyport radio receiver, which allows users to pick up an optional remote to gain remote triggering and high-sync support. Additionally, it can produce up to 350 full-power flashes from the included battery pack.
In terms of speed, the ELB 400 boasts recycle times of 0.17-3.5 seconds and flash durations of 1/1200-1/2800 when at 100% power. The pack also features an OLED display for clearly viewing settings as well as a 3.5mm sync port for a conventional wired setup. The ELB 400 can even have the modeling light set up with programmable timers in addition to the on, off, and continuous modes. And, for those on the move, the pack only weighs 4.4 lb with the included battery.

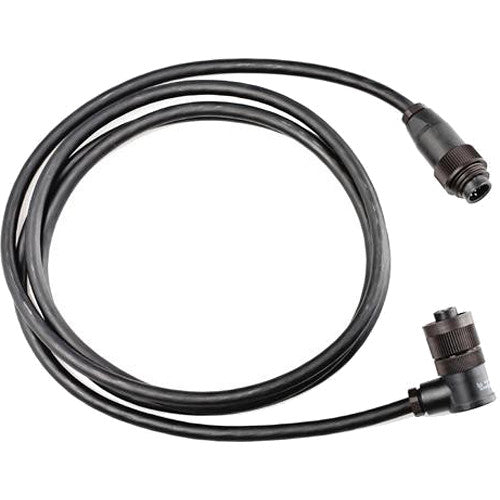

Elinchrom EL 11001 8' Head Cable for Quadra
The Elinchrom EL 11001 8' Head Cable for Quadra RQ Flashhead connects the RQ A / S Heads with the Ranger Quadra battery power pack. The standard flashhead cable supplied with each RQ Flashhead is 8' (2.5 m).
Efficient high quality flash cable, with low inner resistance for maximum performance
Very flexible and lightweight

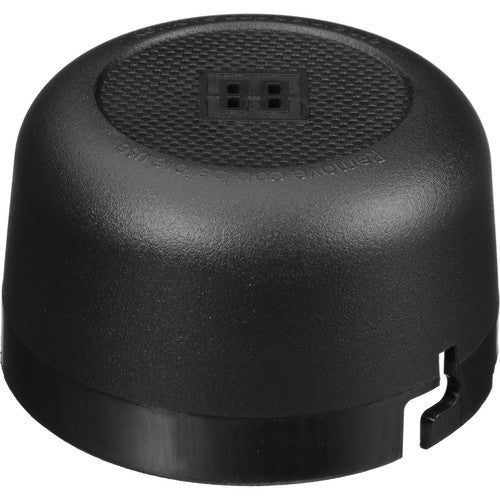

Elinchrom Protective Cap for Quadra Head
The Protective Cap for Quadra Head from Elinchrom is a preventative measure against shock or impact damage to the strobe head's flashtube and modeling lamp. Made of lightweight polymer, the cap bayonets securely on the head in place of a reflector. As a safety measure, the embossed Elinchrom logo can be seen clearly in case the modeling light is turned on.

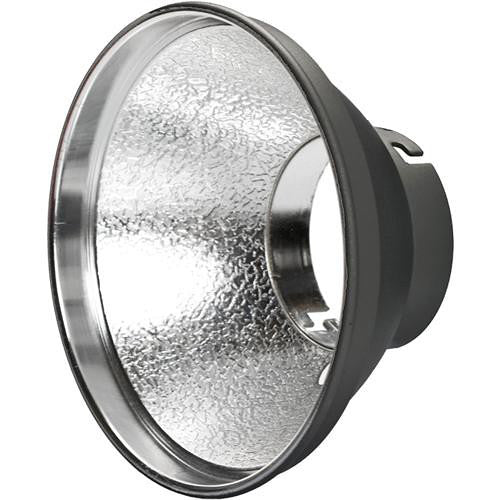

Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads
The Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads bayonets directly on the RQ S or RQ A head and accepts 7 inch (17.8 cm) 12, 20 or 30 degree Elinchrom grids to narrow the beam diameter.
Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm)
This is an Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm) that fits older Elinchrom packs and monolights that have the lock-ring style of sync connection. This cable connects the EL-Skyport Universal Receiver to Classic Elinchrom flash units with the EL-Amphenol Syncron socket. The mono jack is 3.5mm. The cable measures 15.75" (40 cm).

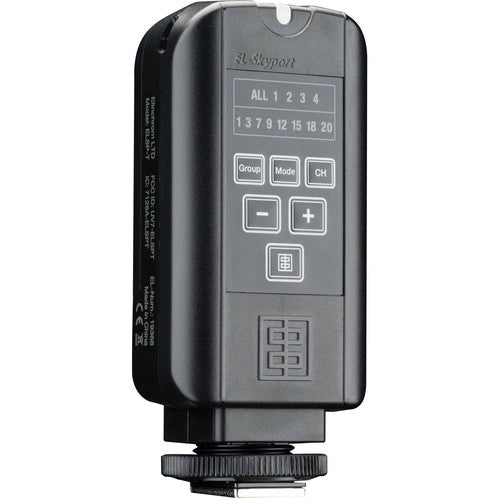

Elinchrom EL-Skyport Transmitter Plus
The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
Details
- Trigger reliably and adjust flash power up to 656' away
- 4 groups and all selection
- 16 different channels available (8 in Normal mode and 8 in Speed mode)
- Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
- Metal hot-shoe connector with screw lock
- 2.5mm sync socket
- Normal and Speed sync mode (for leaf shutter cameras)
- All functions can be easily adjusted
Benefits
- Reliable and consistent triggering
- Enhanced swivel function for improved reception
- Continued choices when setting up your strobes
- Multiple channels for more options when working with or in multiple setups
- Control light power at the camera
- No fussing with button batteries, uses AA batteries available everywhere
- Locking functionality while connected to your camera
- Flexibility of use with a 2.5mm sync socket

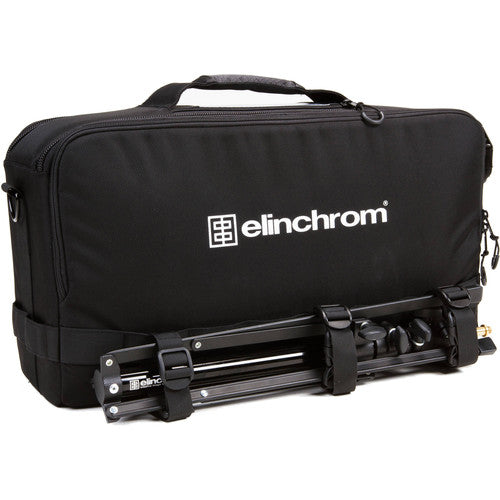

Elinchrom ProTec Location Bag
The ProTec Location Bag from Elinchrom is designed for the ELB 400 or previous Quadra series flash system. Made of high-quality nylon, the 23.8 x 8.5 x 12.3" padded bag features YKK zippered closure and movable dividers in a light-colored interior that makes it easy to find black photo gear in dim light. There's plenty of room for an ELB pack and 2 Quadra flash heads. The bag has 2 side pockets for accessories and a smart sleeve for securing it to your luggage. A rain cover is included for inclement weather while touch-fastener straps on the exterior hold light stands, tripods, or umbrellas. Carrying options include a hand strap plus an adjustable shoulder strap.
Benefits
- 2 side pockets for documents and small items
- YKK zippers for extra durability
- High-quality nylon
- Rain protective cover
- Adjustable and comfortable shoulder strap
- 4 vertical and 4 horizontal dividers for flexibility
- 4 touch-fastener straps to securely attach tripodsor umbrellas
- Smart sleeve to secure the bag to your luggage
- Light gray interior makes it easy to find black photographic items when working in dark environments
Includes
Elinchrom ELB 400 Quadra Power Pack with Battery
◦ Elinchrom Quadra Li-Ion Battery
◦ Elinchrom Ranger Quadra Li-Ion Battery Charger
◦ Elinchrom PC to 3.5 mm Sync Cord (16'/5.0 m)
◦ Elinchrom Shoulder Strap for Quadra and ELB Power Pack
◦ Limited 2-Year Manufacturer Warranty
Elinchrom EL 11001 8' Head Cable for Quadra
Elinchrom Protective Cap for Quadra Head
◦ Limited 1-Year Manufacturer Warranty
Elinchrom 7" (17.8 cm) Grid Reflector for Quadra Heads
◦ Limited 1-Year Manufacturer Warranty
Elinchrom Sync Cable 3.5mm to Amphenol - 15.75" (40 cm)
◦ Limited 2-Year Manufacturer Warranty
Elinchrom EL-Skyport Transmitter Plus
◦ 2.5mm to PC Sync Cord
◦ Wrist Strap
◦ Limited 2-Year Manufacturer Warranty
Elinchrom ProTec Location Bag
◦ Shoulder Strap
◦ Limited 1-Year Manufacturer Warranty
Quadra Action Flash Head
