Elinchrom ELB 1200 Pro Flash Head #EL20187- Demo
Elinchrom ELB 1200 Pro Flash Head #EL20187
Elinchrom ELB 1200 Pro Flash Head with daylight balanced LED modeling lamp for universal use and good flash durations while connected to the ELB 1200 Battery Pack. The new short glass dome makes the head more compact and protects the flashtube and LED modeling lamp. This lightweight and robust aluminum head connects seamlessly with all Elinchrom Rotalux and Litemotiv light shapers. It's ultra-bright modeling lamp can be used for both still and video applications. The cooling fan can even be deactivated when used in video mode.
Features

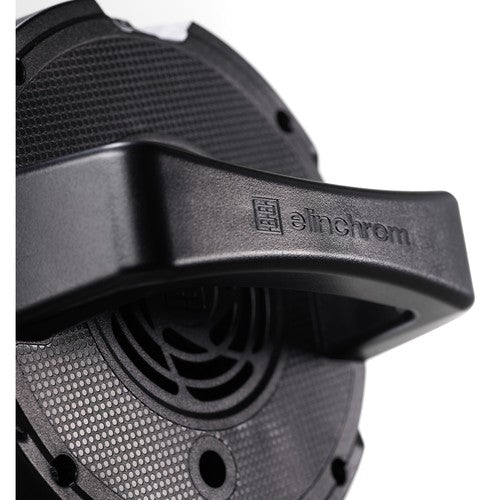

New robust aluminum housing with ergonomic carrying and positioning handle.
• Ultra-bright daylight LED modeling lamp for video and still photography.
• The cooling fan can be deactivated, when used in video mode.

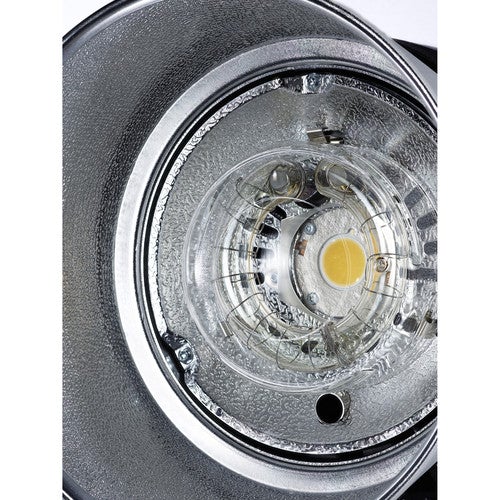

• Programmable 50 W (equivalent to 250 W Halogen / 4000 Lumens) daylight 92 CRI LED modeling lamp with timer and on, free, prop, and VFC options.
• New ultra-strong metal tilt-head with extra 8 mm umbrella fitting.
• New centered umbrella tube for 7 mm umbrella shafts.
• 13Ft./4m heavy duty flash cable
Specifications
| Weight | 4.84 lbs. (2.2 kg) |
| Exterior Dimensions | 5.51W X 9.09H X 8.86D in. (14 X 23.1 X 22.5 cm) |
| Warranty Duration (Standard) | 2 Years |
| Energy (WS/J) | 1200 WS 1200 J |
| Flash Capacity (J/J) | 1200 WS |
| F-Stop | (2 and 1m, 100 ISO, 48° reflector) 100%: 64.0 / 128.0 66%: 45.4 / 90.4 50%: 45.0 / 90.0 33%: 32.4 / 64.4 |
| Lumen | Modeling Lamp: 50 W, dimmable LED (equivalent to 250 W), 4000 Lumens, daylight |
| Compatible Power Packs | ELB 1200 |
| Flash Duration | Flash duration in s at max. power, in s t0.5 100%: 1/1280 66%: 1/1720 50%: 1/2130 33%: 1/2860 Flash duration in s at min. power, in s, t0.5 100%: 1/1640 66%: 1/1670 50%: 1/2400 33%: 1/2220 Best flash duration, in s t0.5 33% Output B at 4.4 / 140 Ws 1/5050 |
| Color temperature in °K at max. power | 5500°K +/- 0.03% |

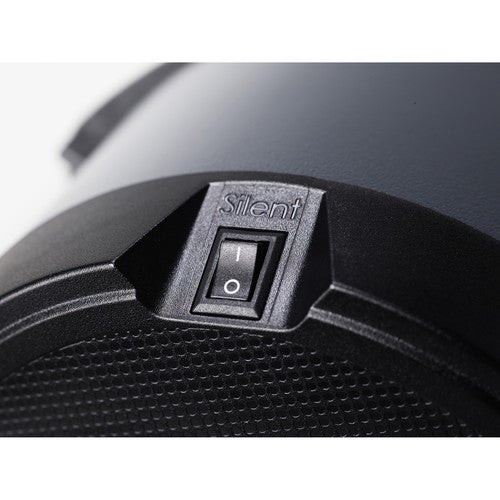

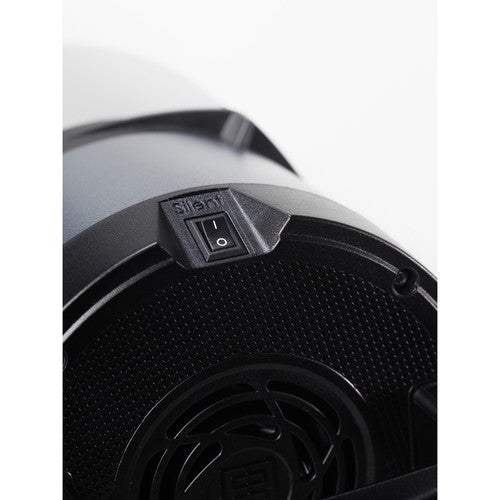

| Controls | Cooling fan with on/off switch for silent video mode |
| Modelling lamp mode | On, free, prop, timer, VFC |
| Modelling lamp 230 V | 50 W, dimmable LED (equivalent to 250 W), 4000 Lumens, daylight |
| Modelling lamp 115 V | 50 W, dimmable LED (equivalent to 250 W), 4000 Lumens, daylight |
| Flashtube | Flashtube No., plug-in user replaceable: EL24085 |
| Cable Length | 13Ft or 4m |
| Light Stand Adapter | 5/8" or 16mm |
| Fan Cooled | Cooling fan with on/off switch for silent video mode |
| Umbrella fitting | Centered 7 mm tube and tilt head with 8 mm umbrella fixing |
Includes
- Elinchrom ELB 1200 Pro Flash Head
- 13' Cable
- Flash Tube
- Protective Cap
- Glass Dome
- Limited 2-Year Warranty
