One Flash to fit them all
The Juno, a single-point, manual flash, has all the functions and features you need to get the job done, whatever your camera system. The Juno is at home on your Canon, Nikon, Sony (MIS), Pentax, Panasonic, Fuji, and Olympus camera. It offers a guide number of 58* and full to 1/128th, power-adjustable in 1/3 stops. A command dial makes power changes fast and easy.
Built-in Transceiver Triggering
Built into the Juno is all the power and cutting-edge technology of the recently released Phottix Ares II Flash Trigger. Set up the Phottix Juno on-camera in Transmitter Mode to trigger other nearby Juno flashes or compatible* Phottix flash trigger receivers. Set Phottix Juno flashes in Receiver mode and triggers them with another Juno flash or an Ares II Trigger.
This Transceiver function brings with it all the latest and greatest Phottix technology – 2.4 GHz, 100m+ range sporting 16 channels, four groups and Phottix’s Digital ID function.
Rounding out the triggering – the Juno is also compatible* with other Phottix flash trigger systems and has two built-in optical slave modes – a traditional optical slave mode as well as a TTL pre-flash delay mode.
Ports Galore

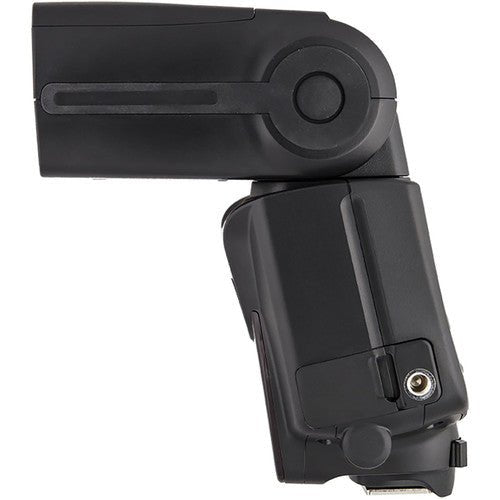

The Juno offers a host of enhancements you wouldn’t expect on a budget-price flash. The body features a ¼”x20 mounting lug – to mount the Juno horizontally, as well as a Canon-compatible HV power port for external AA battery packs.
Compatibility
The Phottix Juno is compatible* with the Ares II and Strato II systems and can be used a Transmitter or Receiver* with both. The Juno is also compatible with the Sekonic L-478DR-PX meter.
Phottix Manual Ecosystem
The Phottix Juno and Ares II are part of Phottix’s new manual ecosystem – for those photographers that know the reliability of a non-TTL workflow. Pair with Phottix’s other on-location accessories like the Spartan Beauty Dish or Saldo Compact Light Stand – the Juno become another powerful tool for location photographers.
Features
• GN 58 Manual Hot Shoe Flash
• Adjustable over 8 stops, in 1/3 stop increments
• Zoom range 20-200mm
• Single Pin – Compatible with most major camera systems
• Built-in Phottix Ares II Transmitter and Receiver

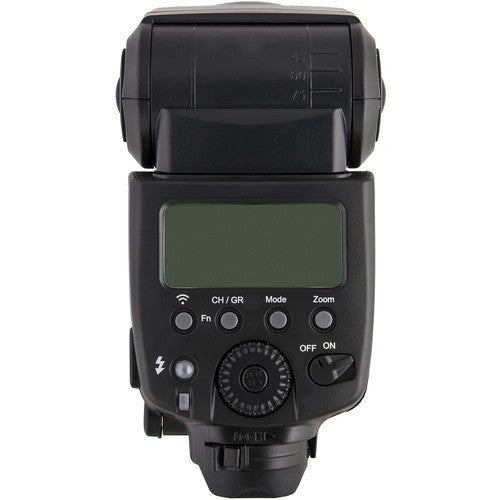

• Fast control and adjustment
• HV Battery Port (Canon compatible)
• 1/4” x20 Mounting Lug
Specifications
| Modes: | Manual and Multi Stroboscopic |
| Guide No.: | 58 / 190 (at 200mm focal length, ISO 100 in meters/feet) |
| Flash Coverage: | 20-200mm (14mm with wide angle diuser panel) |
| Zoom: | Manual 20-200mm (14mm with wide angle diuser panel) |
| Rotation: | 180 degrees both directions, Up-Down: -7 to 90 degrees |
| Sync Modes: | PC port, standard ISO hot shoe, built-in optical slave |
| Stroboscopic Flash: | Frequency: 1-100Hz, Number of ashes: 1-24 (1/128 power) |
| Power: | Four size-AA Alkaline or NiMH batteries, compatible external battery pack |
| Power Saving: | Non-wireless slave modes: 10 mins /30 mins /60 mins or o |
| Recycling Time/Flash-ready Indicator: | Normal ash: Approx.0.1-5 sec. |
| Wireless Flash Transmission Method: | Radio Frequency and Optical Pulse |
| Channels: | 1 - 16, ID (5-16) |
| Wireless Options: | - |
| Transmission Range (Approx.): | Radio: 100m +, Optical: Indoors12-16m/39.3-52.4 ft., Outdoor: 7-9m/22.9-29.5 ft. |
| Reception Angles: | Radio: 360° all directions, Optical transmission: ±40° (horizontal), ±30° (vertical) |
| Controlled Groups: | 5 (M, A, B, C, D) (TX mode) |
| Dimensions: | 190 x 75 x 53 mm (L x W x H) |
| Weight: | 380g (Flash Only, excluding batteries) |

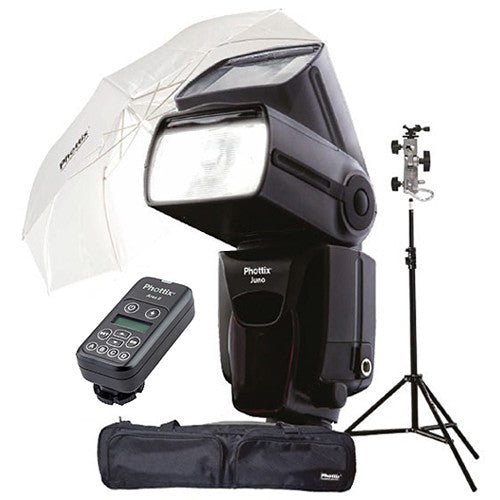

Included:

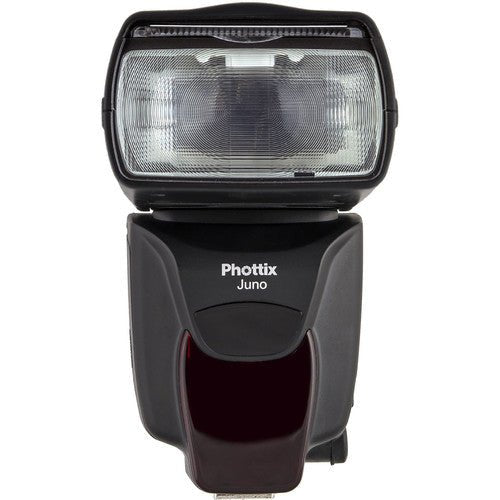

• Phottix Juno Transceiver Flash

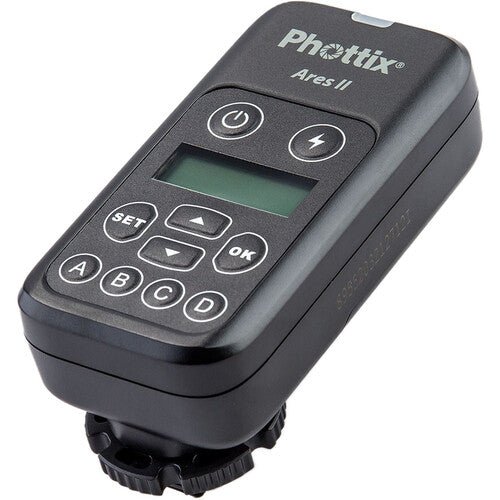

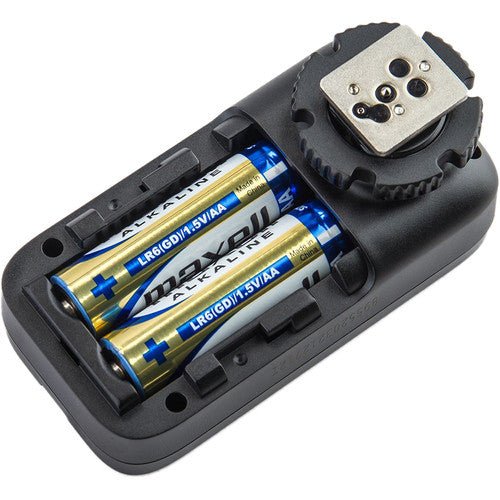

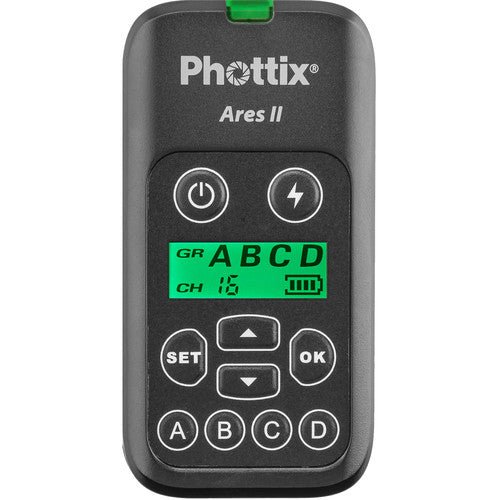

• Phottix Ares II Flash Trigger Transmitter
• Phottix P220 Light Stand (H/220cm/87")

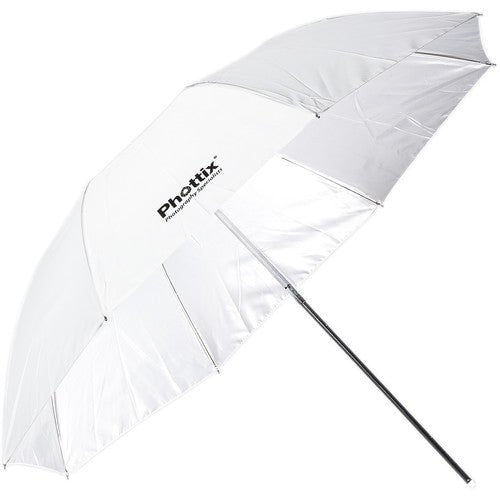

• Phottix Double-Small Folding Shoot-Through Umbrella (91cm/36")

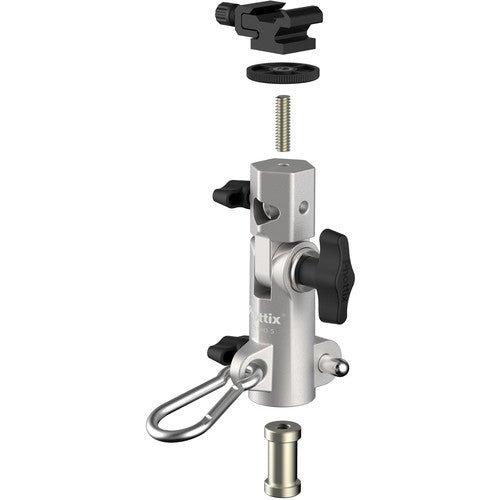

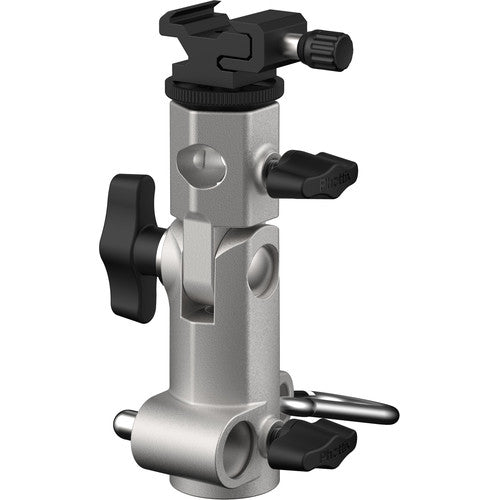

• Phottix Varos Pro S Multi-Function Flash Shoe Umbrella Holder

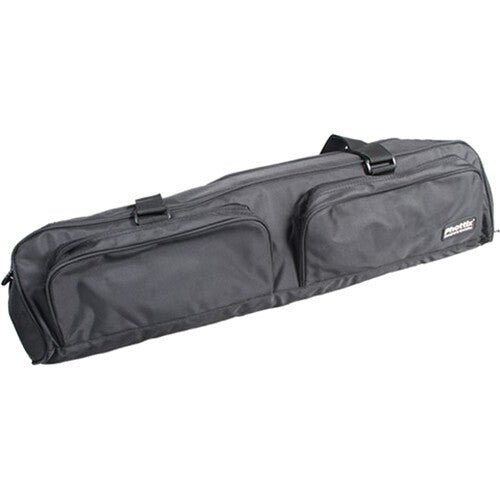

• Phottix Gear Bag (70cm/28")
