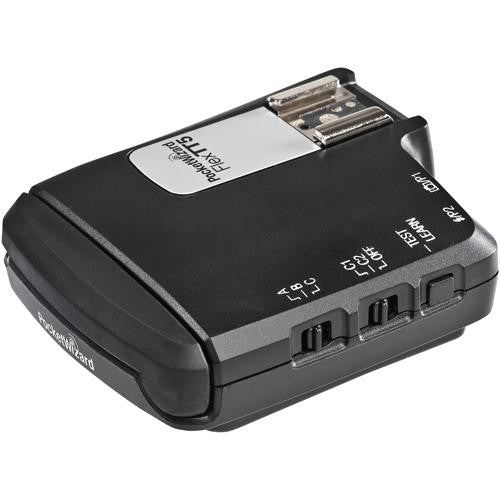

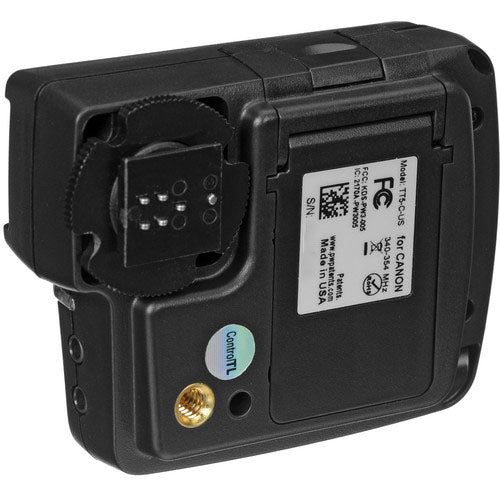

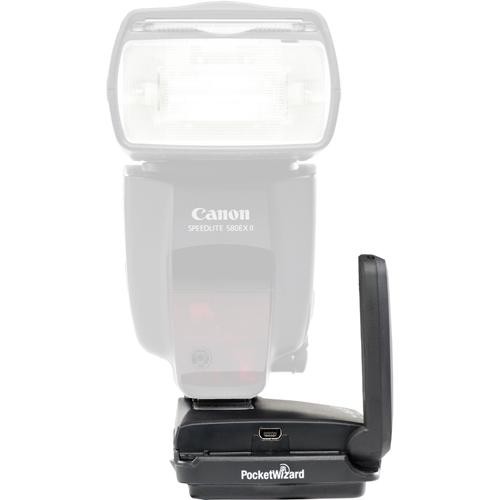

PocketWizard FlexTT5 Transceiver For Canon TTL Flashes and Digital SLR | Demo

TL Compatibility:

Canon E-TTL II


Frequency:

FCC/IC model: 340.00-354.00 MHz North America
        CE model: 433.44-434.42 MHz EU/Asia/Other

Channels:

52 Channels over 26 Frequencies (FCC/IC)
        35 Channels over 5 Frequencies (CE)

Antenna:

2.7" (6.9 cm) rubberized with 180 degree swing

Transmit output power:

Less than 0.001 watt (1/1000 of a watt or 1 milliwatt)

Range Performance:

Up to 10 to 240 meters (30 to 800 feet for E-TTL triggering.  Up to 10 to 365 meters (30 to 1200 feet) for basic triggering. Range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference.

For more info, click here.

Mounting:

Hot Shoe, 1/4-20, lanyard, velcro

Maximum Shooting Rate  Frames per second (fps)

8 fps for E-TTL II and normal triggering

Power / Channel Switch

OFF - C.2 - C.1

Zone Select Switch

A-B-C (matches Canon slave groups)

Status Indicator

LED: Green, Amber, Red status indications

Camera / P1 Port

1/8" (3.5 mm) stereo miniphone for 2-stage remote camera triggering.  Port Voltage Handling: up to 50 Volts, 100 milliamp continuous
        Tip = Trigger
        Ring = Pre-Trigger
        Sleeve = Ground

Flash / P2 Port


1/8" (3.5 mm) mono miniphone.  Port Voltage Handling: up to 200 Volts, 4 amps peak, 250 milliamp continuous, non-polarized

Minimum Receive Contact Time

Camera / P1 Port = 80 milliseconds

Flash / P2 Port = 500us

Voltage Present

3.3 VDC (all pins) - safe for all cameras

Hot Shoe voltage protection:

Hot Shoe: up to 50V

USB:

USB Compliant 2.0, Mini-B Connector, 5VDC regulated, 100mA, Pin 1 Positive, Pin 4 Ground

Operating Temperature

Above -15° C (5° F) and below 50° C (120° F).

Storage Temperature (without battery)

Above -30 C (-22 F) and below 85 C (185 F)

Construction

High impact plastic, captive battery door
        Hot Shoe made of glass reinforced resin

Power


Two (2) AA (IEC:LR6) Alkaline recommended, other chemistries (NiMH, NiCAD, Lithium) allowed, USB

Battery Life

60 + Hours

Dimensions

3.6" (9.2 cm) long x 2.9" (7.3 cm) wide x 1.4" (3.6 cm) tall, antenna lowered

Weight

5.4 oz (153 grams) 3.8 oz (108 grams) without batteries

Included in the box

FlexTT5 Transceiver, USB cable, Two (2) AA batteries, Quick Guide

ROHS Compliant
